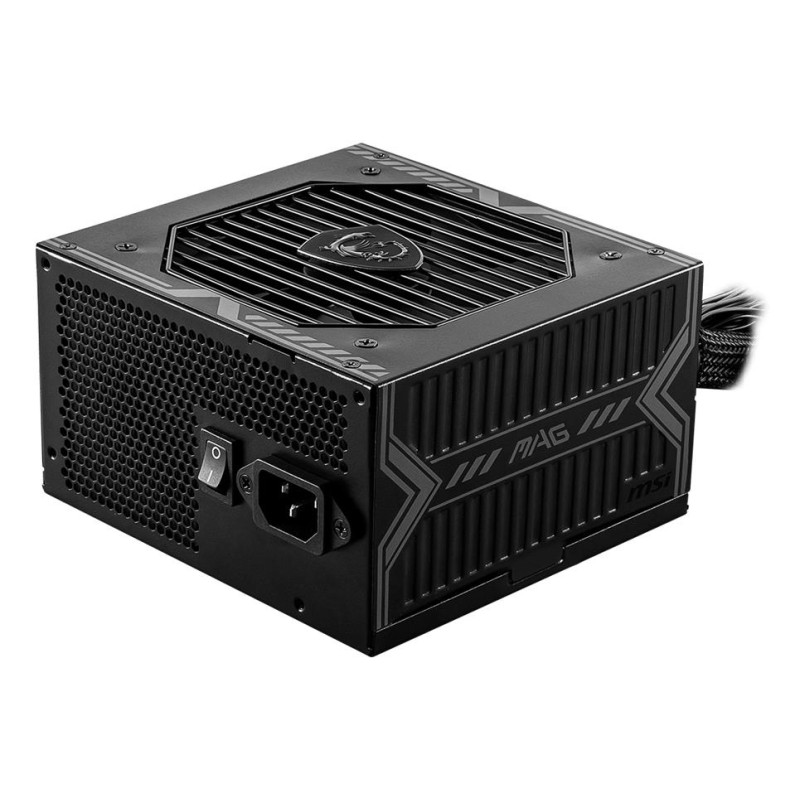

MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
80 PLUS BRONZE CERTIFIED The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 H
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Logistics data (Harmonized System (HS) code)
84733020
Design (Product colour)
Black
Power (AC input frequency)
50 - 60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
648 W
Power (Combined power (+3.3V))
110 W
Power (Combined power (+5V))
110 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
54 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
20 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Short circuit
Power (Total power)
650 W
Ports & interfaces (ATX Power connector (24-pin))
No
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
600 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
5
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (80 PLUS certification)
80 PLUS Bronze
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Power (Efficiency)
85 %
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Power (Maximum input current (@110V))
10 A
Power (Maximum input current (@220V))
5 A
Ports & interfaces (EPS power connector (8-pin))
No
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (EPS power connector (4+4 pin))
