The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

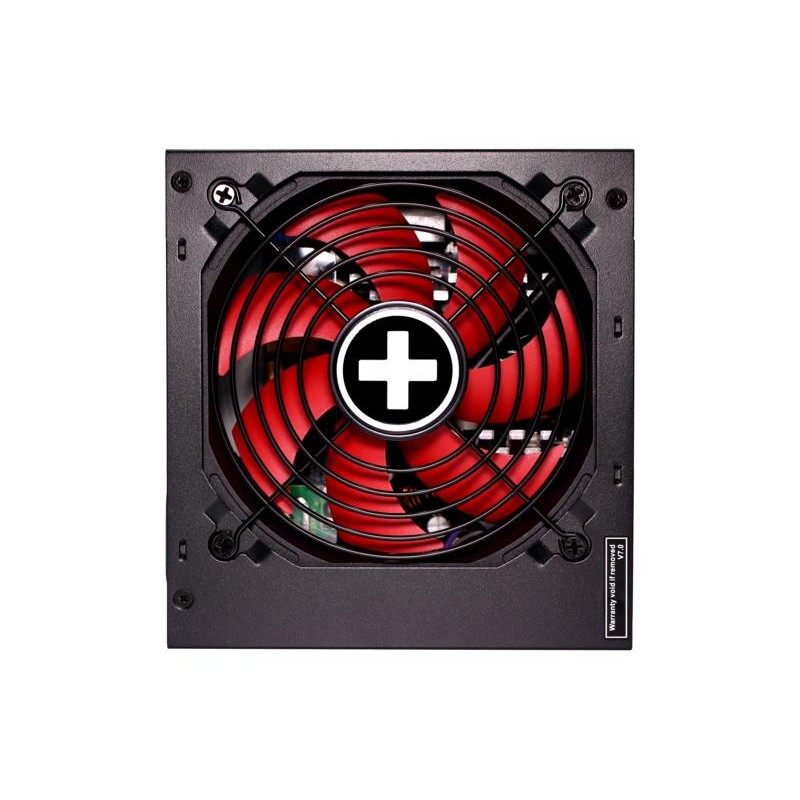

Xilence XN225. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX
Packaging data (Package width)
580 mm
Packaging data (Package depth)
440 mm
Packaging data (Package height)
265 mm
Packaging data (Package weight)
1980 g
Certificates (Compliance certificates)
CB/CE/cTUVus/REACH/RoHS/WEEE
Design (Product colour)
Black/Red
Power (AC input frequency)
50 Hz
Power (AC input voltage)
200 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
ErP2014
Performance (Noise level)
29 dB
Power (Input current)
10 A
Design (Fan diameter)
140 mm
Power (Combined power (+12V))
576 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
6 W
Power (Max output current (+3.3V))
23 A
Power (Max output current (+5V))
17 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.5 A
Power (Power protection features)
Over current/Over voltage/Overheating/Overload/Under voltage
Power (Total power)
650 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
500 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Performance (80 PLUS certification)
80 PLUS Bronze
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Technical details (Sustainability compliance)
Yes
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.4
Power (Efficiency)
85 %
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Technical details (Sustainability certificates)
ErP
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (Floppy disk drive connector)
Yes
Power (Max output current (+12V1))
48 A
Ports & interfaces (Number of PATA power connectors)
