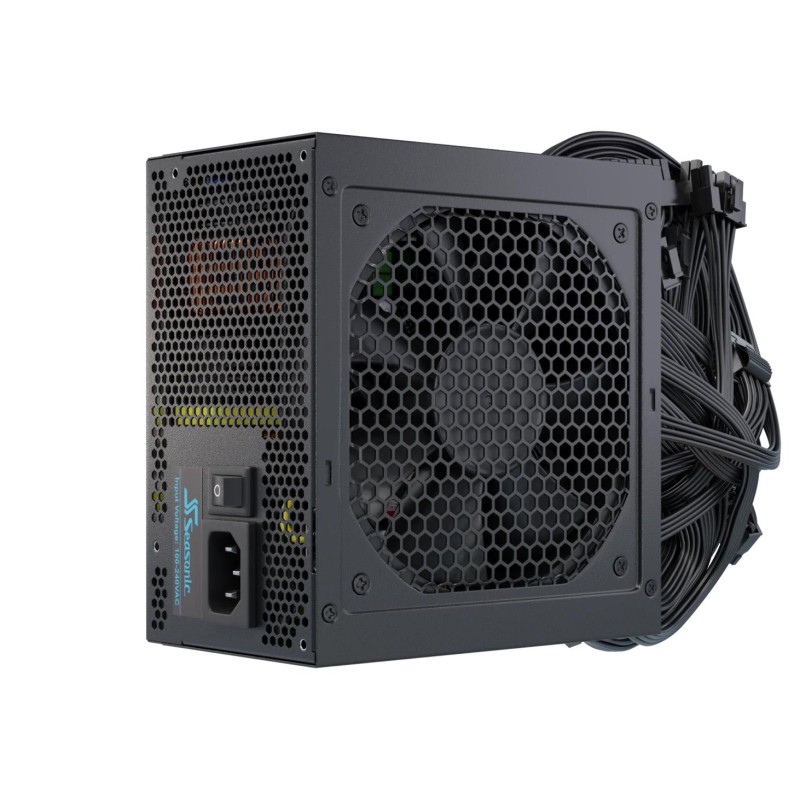

Power Supply|SEASONIC|G12 GC|850 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|G12GC-850
  • Power Supply|SEASONIC|G12 GC|850 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|G12GC-850

Power Supply|SEASONIC|G12 GC|850 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|G12GC-850

G12 GC-850
SEASONIC
850 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Package type Box | G12 GC
93,33 €
KM-ga
Tarneaeg 1-5 tööpäeva.
Kogus
Laos
26 Tooted

Kirjeldus

The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

Üldine informatsioon
SEASONIC
G12 GC-850
26 Tooted

Lisainfo

Müüja koduleht
https://seasonic.com/g12-gc/
Mudeli nimi
G12 GC
Garantija
60
Category Code
PSU
Unit Box Height
0.12
Unit Box Length
0.275
Unit Box Width
0.19
Units per Shipping Box
5
Unit Calculated Volume
0.007566 cubm
Unit Calculated Weight
2.7 kg
Summary
Seasonic Netzteil 850W G12 GC-850 80+Gold. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colo
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Packaging content (Cables included)
AC,CPU,PCIe,SATA
Packaging data (Package type)
Box
Certificates (Compliance certificates)
REACH/RoHS/WEEE
Operational conditions (Operating temperature (T-T))
0 - 50 C
Design (Product colour)
Black
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Power (Input current)
8 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
840 W
Power (Combined power (+3.3V))
100 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
70 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage
Power (Total power)
850 W
Ports & interfaces (Cabling type)
Non-Modular
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Efficiency)
90 %
