1000 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 2.48 kg | Package type Box | UD1000GM PG5 ICE
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

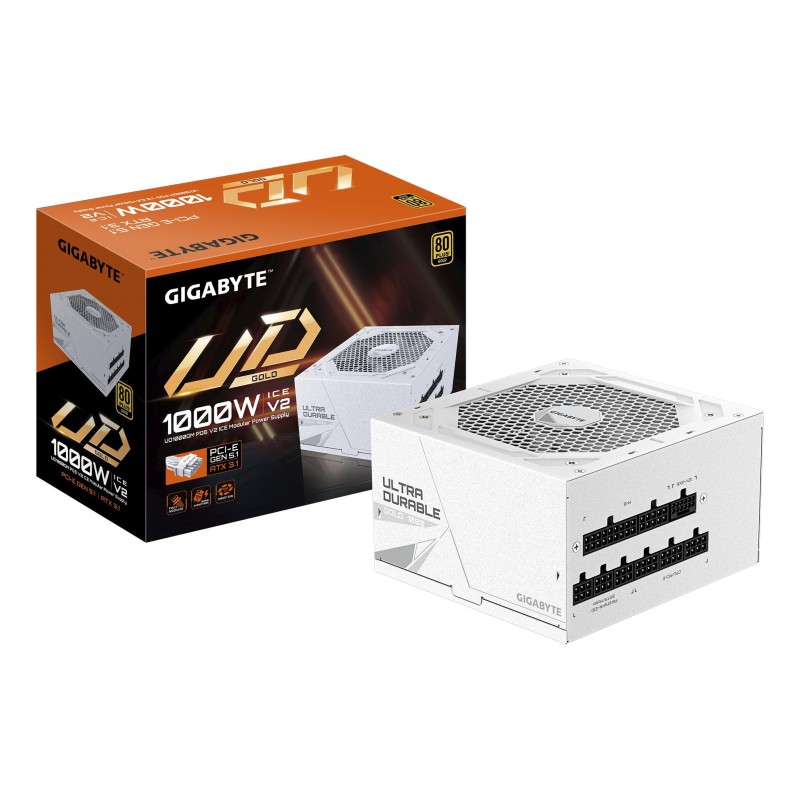

GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 p
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
2480 g
Packaging data (Package width)
618 mm
Packaging data (Package depth)
269 mm
Packaging data (Package height)
211 mm
Packaging data (Package weight)
2640 g
Packaging data (Package type)
Box
Design (Product colour)
White
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
15 - 6.5 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
1000 W
Power (Combined power (+3.3V))
125 W
Power (Combined power (+5V))
125 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
83.3 A
Power (Max output current (+3.3V))
25 A
Power (Max output current (+5V))
25 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
1000 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
610 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Logistics data (Warranty period)
10 year(s)
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
3.1
Power (Efficiency)
90 %
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
4
Performance (Bearing technology)
HYB
Ports & interfaces (CPU power cable length)
650 mm
Ports & interfaces (PCI Express power cable length)
600 mm
Power (Hold time)
16 ms
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (Number of EPS connectors)
2
Ports & interfaces (PCI Express connector)
Yes
Ports & interfaces (PCI Express power connectors (12+4 pin))
