1250 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC/Server | ATX | Fan diameter 135 mm | Package type Box | MPG A1250GS PCIE5
Featuring ATX 3.1 and PCIe 5.1 support with two 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
Supports Nvidia® GeForce RTXTM 50 series graphics cards
2 x native 12V-2x6 connector
Dual-color 12V-2x6 cable
80 PLUS Gold certified
Optimized the sound level
100% all Server-grade 105oC capacitor
Embossed Jacket Cables, the cables are more bending and routing

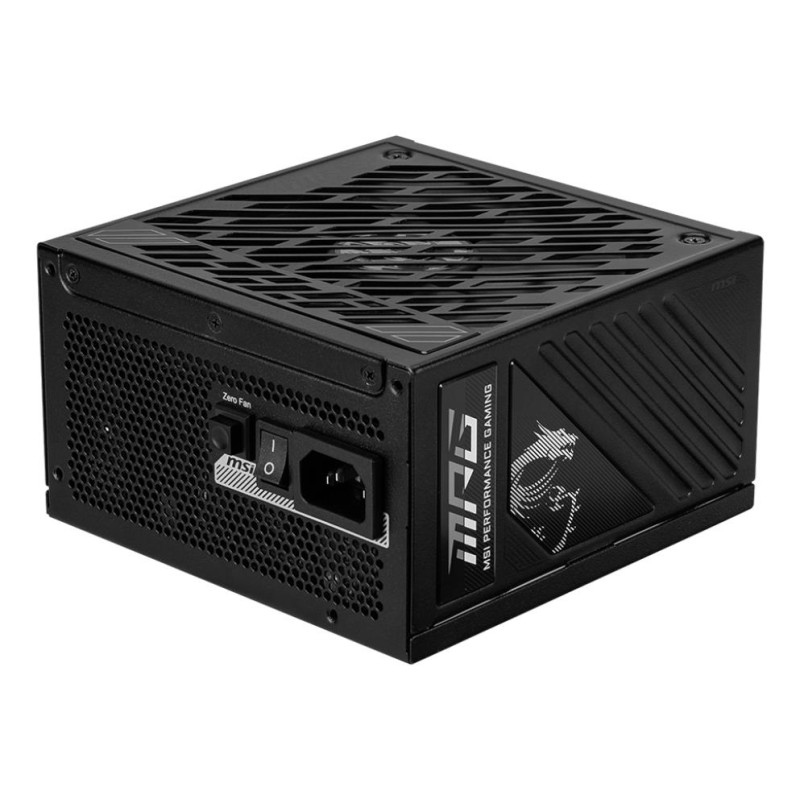

MSI MPG A1250GS PCIE5. Total power: 1250 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC/Server, Power supply unit (
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
86 mm
Weight & dimensions (Height)
150 mm
Packaging data (Package type)
Box
Design (Product colour)
Black
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Semi-passive
Design (Number of fans)
1 fan(s)
Design (Fan diameter)
135 mm
Design (Illumination)
No
Power (Combined power (+12V))
1249 W
Power (Combined power (+5V))
20 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+5V))
22 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Total power)
1250 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
600 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
4
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC/Server
Performance (Supported motherboard form factors)
ATX
Power (Power Factor Correction (PFC) type)
Active
Power (Efficiency)
90 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
1
Ports & interfaces (EPS power connector (8-pin))
No
Ports & interfaces (EPS power connector (4+4 pin))
