The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
PCIE5.0 READY It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.
80 PLUS BRONZE CERTIFICATION The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
PROTECTION DEISGN Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.
120MM LOW NOISE FAN The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.

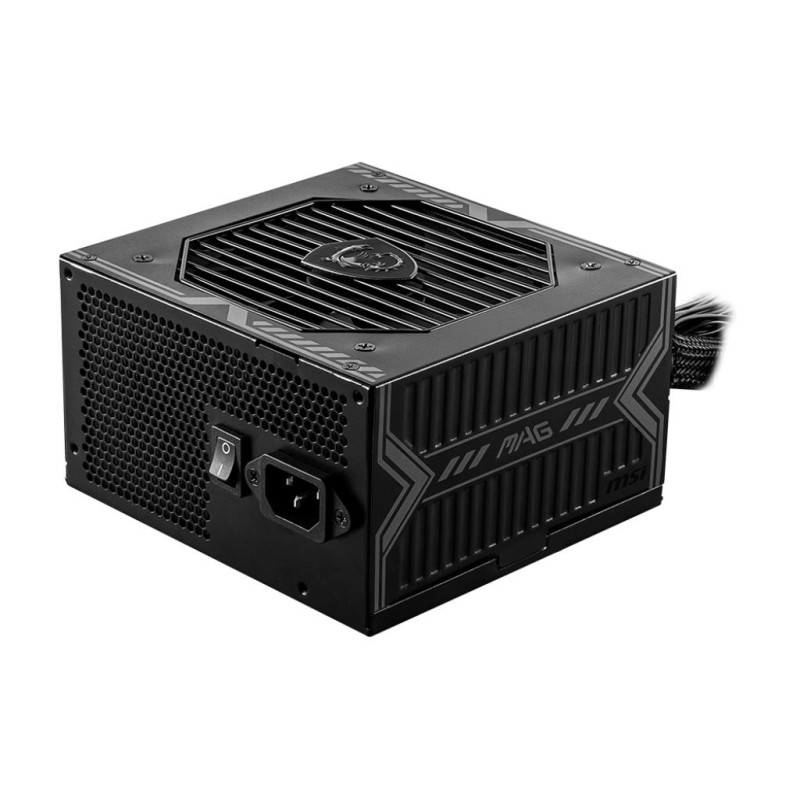

MSI MAG A750BN PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLU
Packaging data (Package width)
150 mm
Packaging data (Package depth)
140 mm
Packaging data (Package height)
86 mm
Design (Product colour)
Black
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Design (Fan diameter)
120 mm
Design (Illumination)
No
Design (On/off switch)
Yes
Power (Combined power (+12V))
750 W
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
62.5 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Short circuit
Power (Total power)
750 W
Ports & interfaces (ATX Power connector (24-pin))
Yes
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
5
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (80 PLUS certification)
80 PLUS Bronze
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Power (Efficiency)
85 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Power (Maximum input current (@110V))
10 A
Power (Maximum input current (@220V))
5 A
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (EPS power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (16-pin))
