The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
80PLUS Bronze certified efficiency
650mm long cables for maximum case compatibility
All modern protection and safety features included

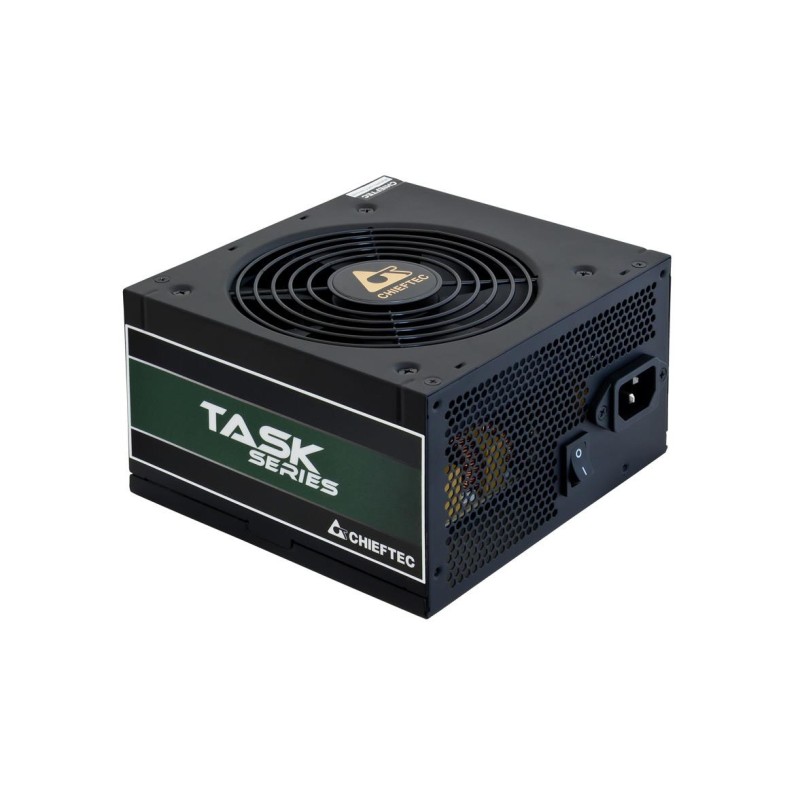

Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply uni
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
87 mm
Weight & dimensions (Weight)
1740 g
Packaging data (Package weight)
2150 g
Packaging data (Package type)
Box
Logistics data (Harmonized System (HS) code)
84733020
Certificates (Compliance certificates)
RoHS
Design (Product colour)
Black
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
100 - 240 V
Design (Number of fans)
1 fan(s)
Certificates (Certification)
ErP, CE, CB, EAC, TUV
Power (Input current)
10 A
Design (Fan diameter)
120 mm
Power (Combined power (+12V))
648 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
54 A
Power (Max output current (+3.3V))
19 A
Power (Max output current (+5V))
17 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over voltage/Overheating/Overload/Short circuit/Under voltage
Power (Total power)
700 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
650 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power cable length)
150/500 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Ports & interfaces (SATA power cable length)
150/500 mm
Performance (80 PLUS certification)
80 PLUS Bronze
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Performance (Supported motherboard form factors)
ATX
Power (Power Factor Correction (PFC) type)
Active
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Ports & interfaces (PCI Express power cable length)
500 mm
Power (Power factor)
0.9
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (EPS power connector (4+4 pin))
