Kirjeldus
8-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images Outputs max. 8MP (3840 × 2160) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 30 m ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Max. 256 G Micro SD card. built-in Mic 12 VDC/PoE power supply facilitates installation IP67 protection SMD 4.0, AI SSA
Üldine informatsioon
Tootekood

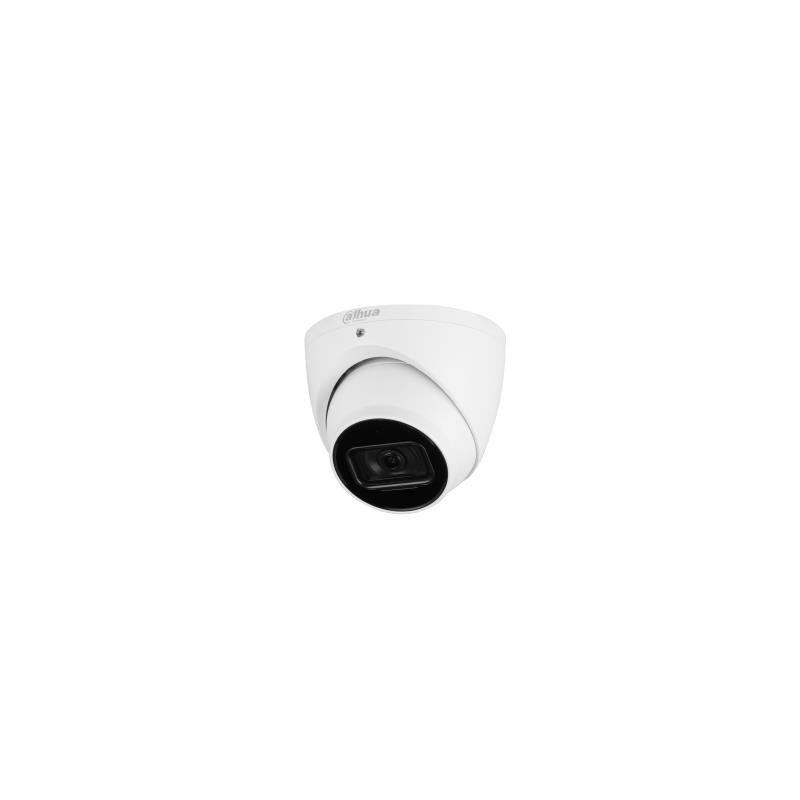

IPC-HDW3841EM-S-0280B-S2
Tarneaeg 2-5 tööpäeva.
26 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/8MP/IPC-HDW3841EM-S-S2 S2
Garantija
36
Mudel
IPC-HDW3841EM-S-0280B-S2
Category Code
FNC
Unit Box Height
0.155
Unit Box Length
0.16
Unit Box Width
0.14
Units per Shipping Box
1
Unit Calculated Volume
0.003472 cubm
Unit Calculated Weight
0.718 kg
Summary
Dahua Technology WizSense IPC-HDW3841EM-S-0280B-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Angle of rotation: 360 , Lens viewing
Weight & dimensions (Height)
93.6 mm
Weight & dimensions (Weight)
500 g
Packaging data (Package weight)
770 g
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
Weight & dimensions (Diameter)
106 mm
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
7.6 W
Power (Power consumption (typical))
4.3 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Design (Form factor)
Turret
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, diagonal)
127
Camera (Lens viewing angle, horizontal)
107
Camera (Lens viewing angle, vertical)
56
Image sensor (Optical sensor size)
1/2.8 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
3840 x 2160 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
8 MP
Storage (Built-in HDD)
No
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
2.8 mm
Camera (Minimum illumination)
0 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Video (Gain control type)
Auto
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 78
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711 -law/G.711 A-law/G.723/G.726
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP
Storage (Internal memory)
1024 MB
Storage (ROM capacity)
128 MB
Lens system (Closest focusing distance)
1.5 m
Night vision (Number of illumination LEDs)
2
Network (Number of users)
20 user(s)
Security (Mirror)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
4.9 W
Performance (Dynamic range)
120 dB
Lens system (Detect distance)
87.7 m
Lens system (Identify distance)
8.8 m
Lens system (Observe distance)
35.1 m
Lens system (Recognize distance)
17.5 m
Video (Bit rate)
3 kbps - 8192 kbps
Camera (Number of Privacy masking areas)
4
Lens system (Minimum aperture number)
1.4
Eriviited
ean13
6923172541437
MPN
1387140
