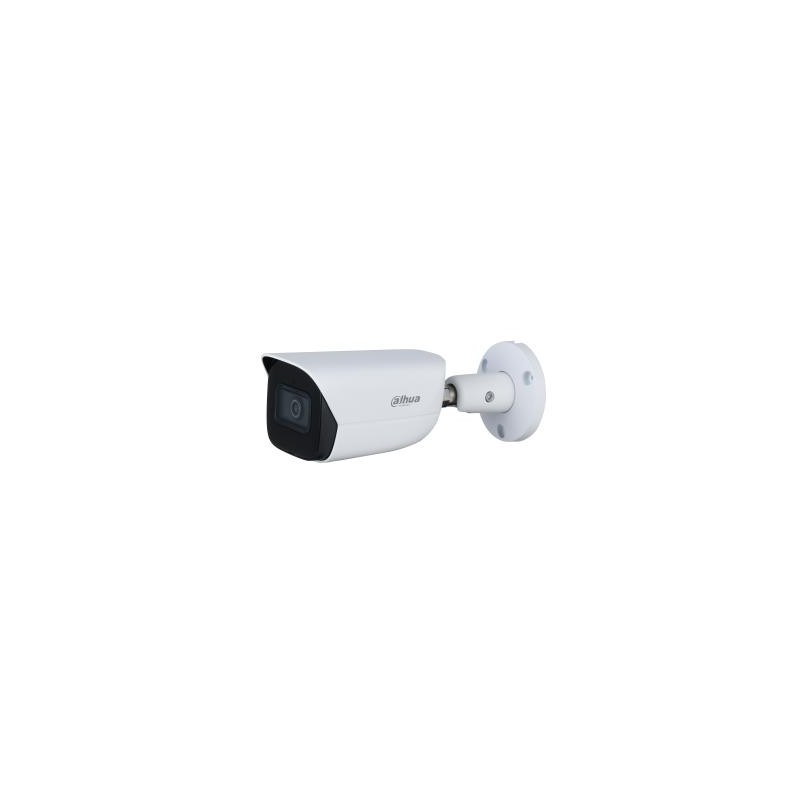

NET CAMERA 4MP IR BULLET/IPC-HFW3441E-AS-0280B-S2 DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/4MP/IPC-HFW3441E-AS

Garantija

36

Mudel

IPC-HFW3441E-AS-0280B-S2

Category Code

FNC

Unit Box Height

0.11

Unit Box Length

0.25

Unit Box Width

0.14

Units per Shipping Box

1

Unit Calculated Volume

0.00385 cubm

Unit Calculated Weight

0.77 kg

Summary

Dahua Technology Lite IPC-HFW3441E-AS. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360

Weight & dimensions (Width)

70.5 mm

Weight & dimensions (Depth)

66.4 mm

Weight & dimensions (Weight)

590 g

Packaging data (Package weight)

780 g

Performance (Certification)

CE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

5.4 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Bullet

Weight & dimensions (Length)

192.7 mm

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

122

Camera (Lens viewing angle, horizontal)

103

Camera (Lens viewing angle, vertical)

55

Image sensor (Optical sensor size)

1/3 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

50 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

People counting/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Number of effective pixels (H x V))

2688 x 1520 pixels

Image sensor (Sensor type)

CMOS

Lens system (Fixed focal length)

2.8 mm

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.6

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265+/M-JPEG

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 90

Camera (White balance)

Auto/Manual/Natural/Outdoor

Video (Bit rate control)

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/2304 x 1296/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576

Video (Video streaming)

Yes

Network (Quality of Service (QoS) support)

Yes

Network (Supported network protocols)

IPv4 IPv6 HTTP HTTPS TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE 802.1x SNMP

Storage (Internal memory)

512 MB

Storage (ROM capacity)

128 MB

Management features (Web browser)

Yes

Lens system (Closest focusing distance)

0.9 m

Night vision (Number of illumination LEDs)

1

Network (Number of users)

20 user(s)

Management features (Web-based management)

Yes

Lens system (Detect distance)

56 m

Lens system (Identify distance)

5.6 m

Lens system (Observe distance)

22.4 m

Lens system (Recognize distance)

11.2 m

Video (Bit rate)

3 Kbps-8192 Kbps

Audio (Voice codecs)

G.711a/G.711Mu/G.723/G.726

Network (Networking standards)

IEEE 802.3af

Management features (Behavior analysis)

Intrusion detection,Line crossing detection

Eriviited

ean13

6923172542045

MPN

1387145
