Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

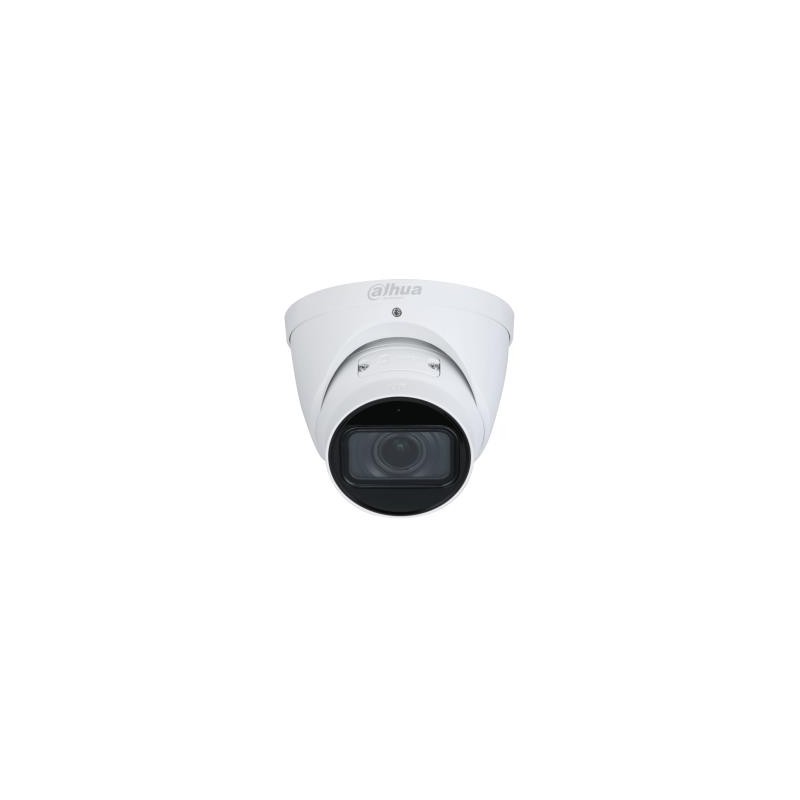

Series Overview With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly im-prove the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, com-plying with the standards of IP67 and IK10 (Supported by some select models).
Face Attributes With deep learning algorithm, the network camera can recognize face attributes, such as gender, age, expression, glasses, mouth mask, and beard.
Face Detection Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot
Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
People Counting With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements
ePoE Dahua ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Protection (IP67, wide voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
4MP, 1/1.8" CMOS image sensor, low illuminance, high image definition
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, face detection, face attributes and people counting
Supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power supply, ePoE network transmission over long distance, easy for installation
Sensor size 1/2.8“ | Resolution 3 Mega Pixel | Microphone Built-in | Supports card capacities up to 512GB | Power supply requirements 100-240VAC, 50/60Hz, 0.3A | Colour Black | Included Accessories Power Adapter,Quick Start Guide,Mounting Screws,Mounting Plate,Camera Base | Dimensions 86.6 x 85 x 117.7 mm | box quantity 24
Eyeball | Black | IP code IP67 | IP security camera | Wired | Wide Dynamic Range (WDR) Yes | Optical sensor size 1/1.8 " | Sensor type CMOS | Night vision Yes | Total megapixels 8 MP | Built-in microphone Yes | Power source type DC,PoE | Weight 800 g
Eyeball | Black | IP code IP67 | IP security camera | Wired | Wide Dynamic Range (WDR) Yes | Optical sensor size 1/1.8 " | Sensor type CMOS | Night vision Yes | Total megapixels 8 MP | Built-in microphone Yes | Power source type DC,PoE | Weight 800 g
Pan/Tilt AI Home Security Wi-Fi Camera | Sensor size 1/2.7“ Progressive Scan CMOS Starlight Sensor | Resolution 8 Mega Pixel | Power supply requirements 5V DC Power Adapter | Colour White | Included Accessories Tapo C260 Camera × 1Power Adapter ×13m / 9.84ft USB-Type C Power Cord ×1Mounting Anchors × 2Mounting Screws × 2L-Shaped Mounting Bracket...
TAPO C460 | Sensor size 1/2.7” | Resolution 8 Mega Pixel | Microphone Built-in | Supports card capacities up to 512GB | Power options Other | Power supply requirements 10000 mAh Built-in Rechargeable Lithium-ion Battery | Included Accessories Metal Plate,Magnetic Base,USB Adapter Cable,Mounting Screws,Mounting Anchors,Camera Bracket,Mounting...
Dome | Ceiling/wall | White | IP code IP42 | IP security camera | Wired | Placement Indoor | Wide Dynamic Range (WDR) Yes | Day/night mode Yes | Optical sensor size 1/2.9 " | Sensor type CMOS | Night vision Yes | Total megapixels 2 MP | Ethernet LAN Yes | Power source type PoE | Weight 150 g | 1xNumber of cameras
Sensor size 1/2.9“ | Microphone Built-in | Power supply requirements 100-240VAC, 50/60Hz, 0.3A | Colour White | Included Accessories Power Adapter, Quick Start Guide, Mounting Screws, Mounting Plate, Camera Base | Dimensions 86.6 x 85 x 117.7 mm | box quantity 24
