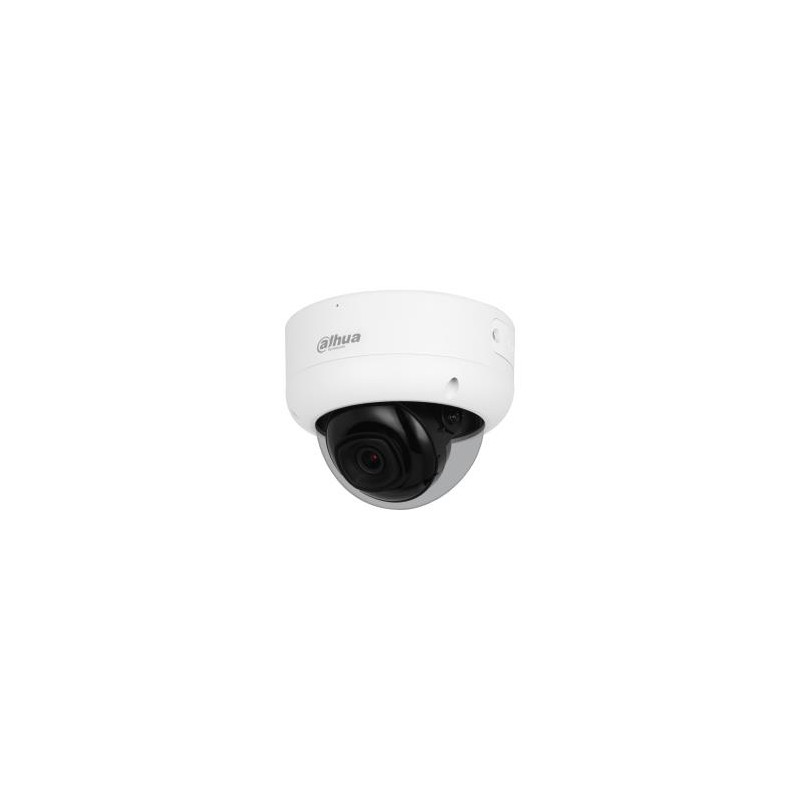

4MP IR Fixed-focal Dome WizSense Network Camera
Outputs max. 4 MP (2688 × 1520) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 50 m ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic 12 VDC/PoE power supply facilitates installation IP67, IK10 protection SMD 4.0, AI SSA
Üldine informatsioon
Tootekood
IPC-HDBW3441E-AS-0280BS2
Tarneaeg 2-5 tööpäeva.
30 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/IR/IPC-HDBW3441E-AS-S2 S2
Garantija
36
Mudel
IPC-HDBW3441E-AS-S2
Category Code
FNC
Units per Shipping Box
1
Unit Calculated Volume
0.002352 cubm
Unit Calculated Weight
0.67 kg
Summary
Dahua Technology WizSense IPC-HDBW3441E-AS-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Black, Form factor: Spherical. Minimum illumination: 0
Weight & dimensions (Width)
89.1 mm
Weight & dimensions (Depth)
111.7 mm
Weight & dimensions (Weight)
516 g
Packaging data (Package weight)
670 g
Performance (Certification)
CE-LVD:EN62368-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
Black/White
Design (Form factor)
Spherical
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Network (Ethernet interface type)
100 Gigabit Ethernet/Fast Ethernet
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/Wall/Desk
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Image sensor (Optical sensor size)
1/3 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
50 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2688 x 1520 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Intrusion/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Audio (Audio input channels)
1.0 channels
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.0005 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Video (Gain control type)
Auto
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Camera (Angle of rotation)
355
Camera (Pan range)
0 - 355
Camera (Tilt angle range)
0 - 75
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711/G.723/G.726/PCM
Night vision (Number of illumination LEDs)
3
Network (Number of users)
20 user(s)
Security (Mirror)
Yes
Audio (Bit rate range)
3 - 8192 Kbit/s
Camera (Number of Privacy masking areas)
4
