Kirjeldus
4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2688×1520) @25/30fps Built-in IR LED, and the max. illumination distance is 50 m ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC 12 VDC/PoE power supply; ePoE IP67 protection SMD 3.0
Üldine informatsioon
Tootekood
IPC-HFW5442E-ASE-0280B-S3
Tarneaeg 2-5 tööpäeva.
14 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/4MP/IPC-HFW5442E-ASE S3
Garantija
36
Mudel
IPC-HFW5442E-ASE-0280B-S3
Category Code
FNC
Unit Box Height
0.1
Unit Box Length
0.22
Unit Box Width
0.11
Units per Shipping Box
1
Unit Calculated Volume
0.00242 cubm
Unit Calculated Weight
0.79 kg
Summary

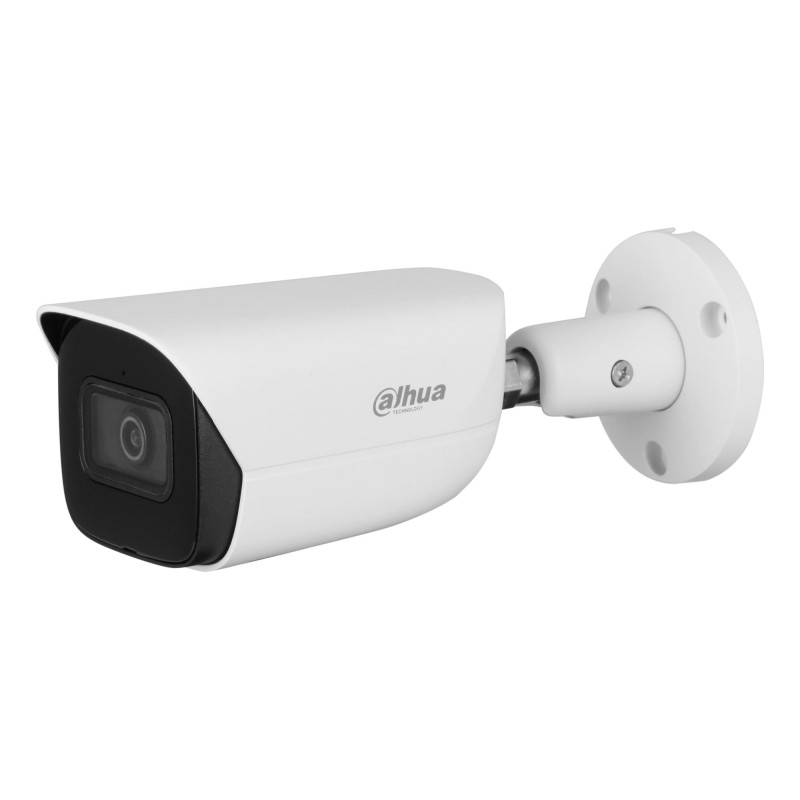

Dahua Technology WizMind IPC-HFW5442E-ASE-0280B-S3. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rot
Weight & dimensions (Width)
70.5 mm
Weight & dimensions (Height)
66.4 mm
Weight & dimensions (Weight)
590 g
Packaging data (Package weight)
780 g
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage relative humidity (H-H))
10 - 95 %
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
6.2 W
Power (Power consumption (typical))
4 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Bullet
Weight & dimensions (Length)
192.7 mm
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
1000 GB
Power (Power source type)
DC,PoE
Sustainability (Compliance certificates)
CE/Federal Communications Commission (FCC)/UL
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Storage (RAM capacity)
1024 MB
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Pole clamp
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
139
Camera (Lens viewing angle, horizontal)
112
Camera (Lens viewing angle, vertical)
58
Image sensor (Optical sensor size)
1/1.8 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
50 m
Video (Frame rate)
60 fps
Video (Maximum resolution)
2688 x 1520 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Lens system (Fixed focal length)
2.8 mm
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.0004 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Lens system (Maximum aperture number)
1.6
Video (Gain control type)
Auto
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711 -law/G.711 A-law/G.723/G.726/PCM
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Storage (ROM capacity)
4096 MB
Lens system (Closest focusing distance)
1.3 m
Night vision (Number of illumination LEDs)
1
Security (Mirror)
Yes
Performance (Dynamic range)
140 dB
Lens system (Detect distance)
61.5 m
Lens system (Identify distance)
6.2 m
Lens system (Observe distance)
24.6 m
Lens system (Recognize distance)
12.3 m
Video (Video recording)
Yes
Security (IP address filtering)
Yes
Network (Networking standards)
IEEE 802.1x/IEEE 802.3af
Camera (Number of Privacy masking areas)
8
Security (Network access storage (NAS))
Yes
Security (Human and vehicle targets classification)
Yes
Eriviited
ean13
6923172588579
MPN
1405050
