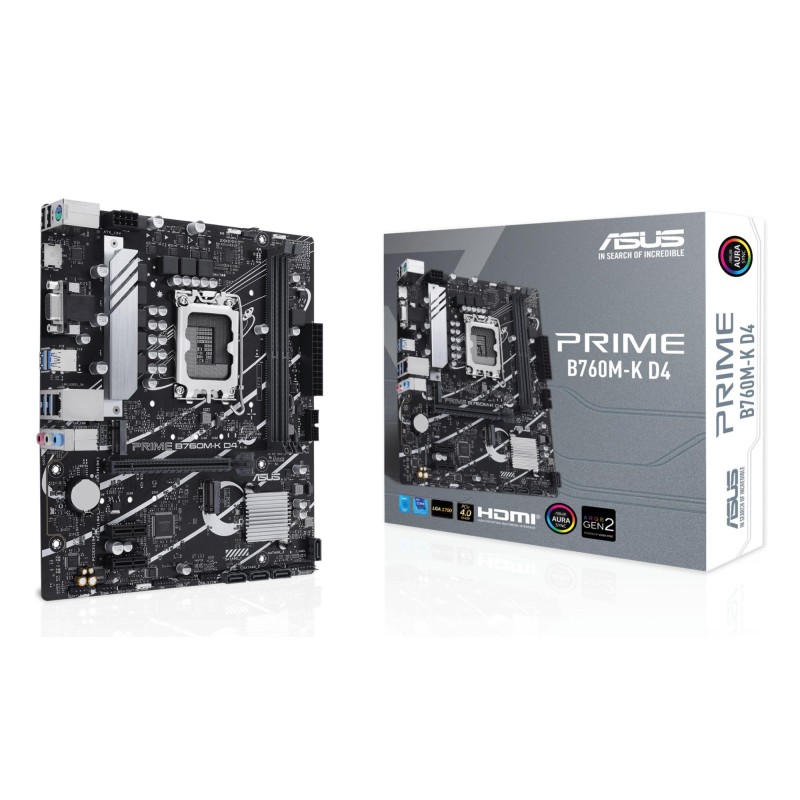

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|

Lisainfo

Müüja koduleht

www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k-d4/

Garantija

36

Mudel

PRIME B760M-K D4

Category Code

MBI

Unit Box Height

0.055

Unit Box Length

0.27

Unit Box Width

0.265

Units per Shipping Box

10

Unit Calculated Volume

0.004834 cubm

Unit Calculated Weight

0.998 kg

CnCode

84733020

Summary

ASUS PRIME B760M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

211 mm

Weight & dimensions (Height)

36 mm

Packaging data (Package width)

270 mm

Packaging data (Package depth)

51.5 mm

Packaging data (Package height)

263 mm

Packaging data (Package weight)

926.3 g

Packaging content (Cables included)

SATA

Other features (Weight)

528 g

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Processor (Processor manufacturer)

Intel

Features (Component for)

PC

Memory (Maximum internal memory)

64 GB

Memory (Memory channels)

Dual-channel

Processor (Compatible processor series)

Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

5333 MHz

Memory (Supported memory clock speeds)

2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz

Memory (Supported memory types)

DDR4-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of chassis fan connectors)

1

Internal I/O (Number of COM connectors)

1

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (S/PDIF out connector)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B760

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11

Expansion slots (Number of M.2 (M) slots)

2

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Memory (ECC сompatibility)

Non-ECC

Expansion slots (PCI Express x1 (Gen 4.x) slots)

2

Rear panel I/O ports (USB connector type)

USB Type-A

Rear panel I/O ports (VGA (D-Sub) ports quantity)

1

Network (Wake-on-LAN ready)

Yes

Eriviited

ean13

4711387006917

MPN

1404753
