Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Supports Intel Core 14th/ 13th /12th processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs GbE LAN with Bandwidth Management NVMe PCIe 3.0 x4 M.2 High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design
Üldine informatsioon
Tootekood

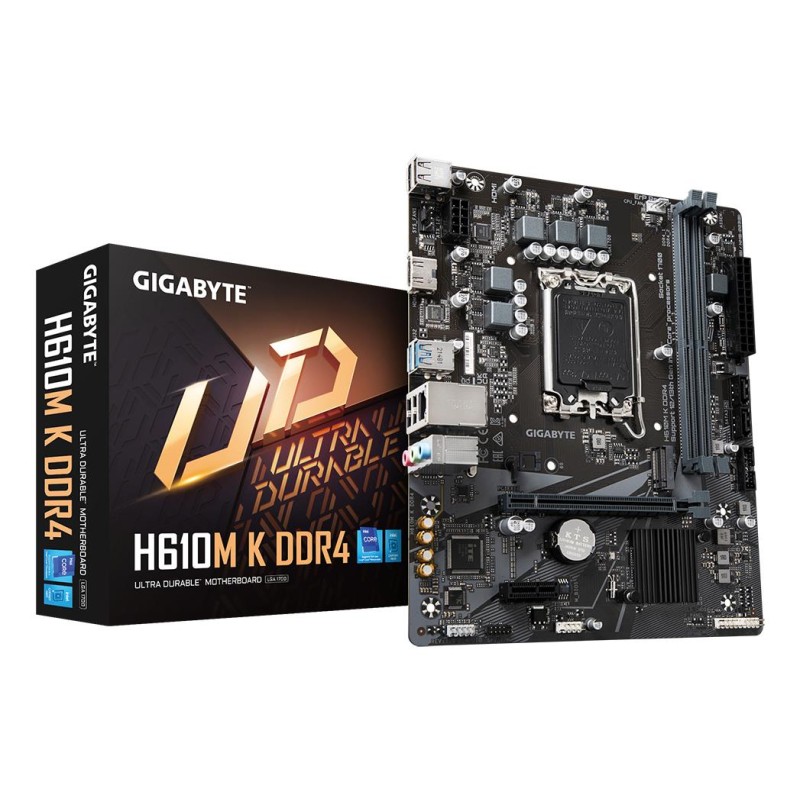

H610M K DDR4 2.0
Tarneaeg 2-5 tööpäeva.
8 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com/
Garantija
36
Mudel
H610M K DDR4 (rev. 2.0)
Category Code
MBI
Unit Box Height
0.052
Unit Box Length
0.265
Unit Box Width
0.24
Units per Shipping Box
10
Unit Calculated Volume
0.004222 cubm
Unit Calculated Weight
0.723 kg
CnCode
84733020
Summary
GIGABYTE H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 3+1+1 Phases Hybrid Power Design, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: In
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
226 mm
Weight & dimensions (Depth)
185 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
265 mm
Packaging data (Package depth)
235 mm
Packaging data (Package height)
52 mm
Packaging data (Package weight)
717 g
Packaging content (Cables included)
SATA
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Logistics data (Country of origin)
China
Processor (Processor manufacturer)
Intel
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory)
64 GB
Memory (Memory channels)
Dual-channel
Network (LAN controller)
Realtek RTL8111H
Battery (Battery weight)
3 g
Processor (Compatible processor series)
Intel Celeron /Intel Core i3/Intel Core i7/Intel Core i9/Intel Pentium Gold
Processor (Processor socket)
LGA 1700
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
2
Memory (Supported memory clock speed (max))
3200 MHz
Memory (Supported memory clock speeds)
2133/2400/2666/2933/3000/3200 MHz
Memory (Supported memory types)
DDR4-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
2
Storage controllers (Number of storage drives supported)
3
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
1
Internal I/O (Number of SATA III connectors)
2
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (USB 2.0 ports quantity)
4
Network (Ethernet interface type)
Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel H610 Express
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
1
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS button)
Yes
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Features (Audio chip)
Realtek ALC897
Features (Power source type)
ATX
Memory (Supported memory module capacities)
12GB/16GB/1GB/2GB/32GB/4GB/8GB
Internal I/O (Total number of SATA connectors)
2
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
ECC & Non-ECC
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2160 pixels
Rear panel I/O ports (USB connector type)
USB Type-A
Expansion slots (PCI Express x1 (Gen 3.x) slots)
1
Internal I/O (Audio connector)
Yes
Processor (Maximum number of SMP processors)
1
Internal I/O (Power fan connector)
Yes
Internal I/O (Number of EATX power connectors)
1
Memory (Maximum RDIMM memory)
64 GB
Eriviited
ean13
4719331851675
MPN
1423006
