Kirjeldus
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution Dual Channel DDR5: 4*DIMMs XMP Memory Module Support Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors Fast Networks: GbE LAN Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Üldine informatsioon
Tootekood
B760M D3HP 1.0
Tarneaeg 2-5 tööpäeva.
50 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com/
Garantija
36
Mudel
B760M D3HP
Category Code
MBI
Unit Box Height
0.055
Unit Box Length
0.27
Unit Box Width
0.27
Units per Shipping Box
10
Unit Calculated Volume
0.004783 cubm
Unit Calculated Weight
0.985 kg
Summary

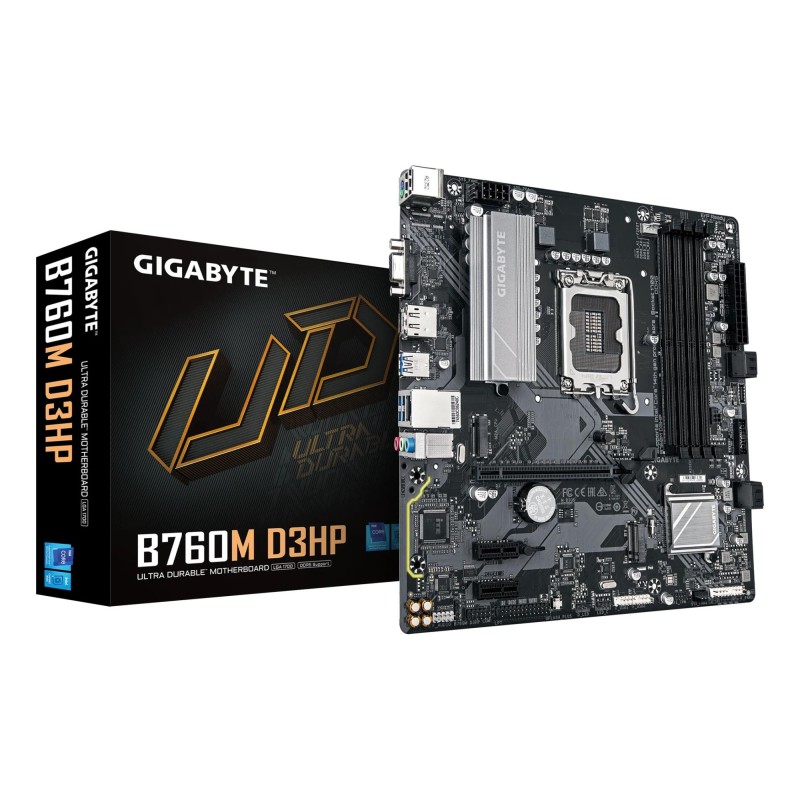

GIGABYTE B760M D3HP Motherboard - Intel Core 14th Gen CPUs, 4+1+1 Phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Core i3
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
270 mm
Packaging data (Package depth)
268 mm
Packaging data (Package height)
68 mm
Packaging data (Package weight)
1210 g
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
720 g
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Packaging content (Screws included)
Yes
Processor (Processor manufacturer)
Intel
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security
Memory (Maximum internal memory)
256 GB
Memory (Memory channels)
Dual-channel
Network (LAN controller)
Realtek RTL8111H
Battery (Battery weight)
3 g
Processor (Compatible processor series)
Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron
Processor (Processor socket)
LGA 1700
Processor (Supported processor sockets)
LGA 1700
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
5600 MHz
Memory (Supported memory clock speeds)
4400/4800/5200/5600 MHz
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
6
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
3
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (S/PDIF out connector)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
2
Network (Ethernet interface type)
Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel B760 Express
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10/Windows 11
Expansion slots (Number of M.2 (M) slots)
2
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Rear panel I/O ports (DisplayPort version)
1.2
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Features (Power source type)
ATX
Graphics (DirectX version)
12.0
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
ECC & Non-ECC
Memory (Maximum internal memory per slot)
64 GB
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2304 pixels
Internal I/O (Number of CPU fan connectors)
1
Internal I/O (Number of RGB LED pin headers)
2
Internal I/O (Serial port headers)
1
Expansion slots (1st M.2 highest PCI Express generation)
4.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Expansion slots (2nd M.2 largest key size)
2280
Internal I/O (Number of EPS power connectors (8-pin))
1
Internal I/O (Parallel connector)
Yes
Rear panel I/O ports (VGA (D-Sub) ports quantity)
1
Expansion slots (PCI Express x1 (Gen 3.x) slots)
2
Eriviited
ean13
4719331864347
MPN
1433076
