Kirjeldus
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
AMD Socket AM4：Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Digital 5+3 phases VRM solution Dual Channel DDR4: 4*DIMMs EZ-Latch：PCIe slots with Quick Release Design Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal: VRM Thermal Armor Advanced Fast Networking: GbE LAN Extended Connectivity: HDMI, Displayport PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Üldine informatsioon
Tootekood

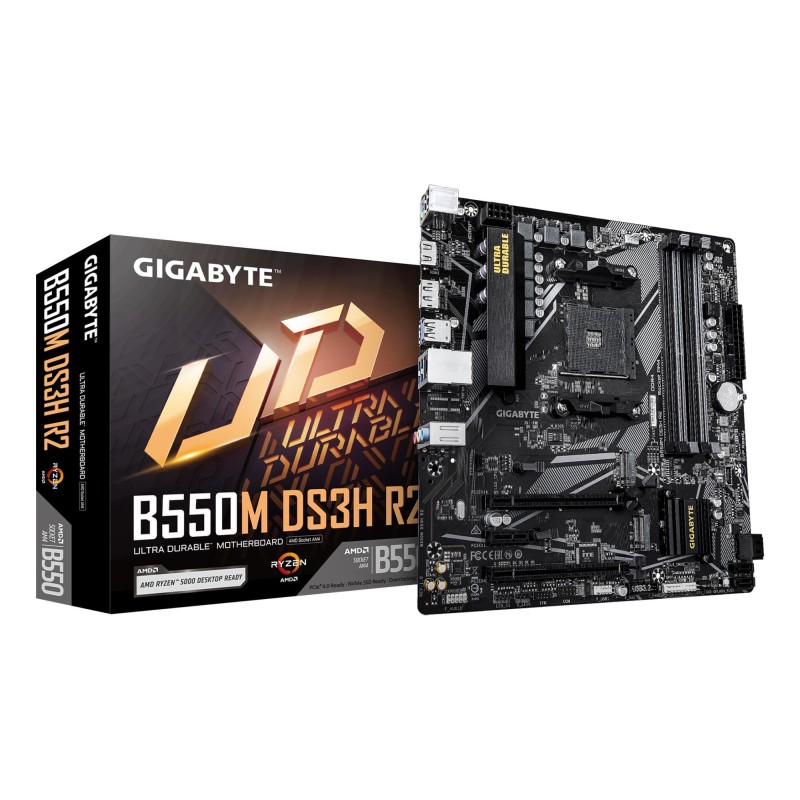

B550M DS3H R2
Tarneaeg 2-5 tööpäeva.
10 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com/
Garantija
36
Mudel
B550M DS3H R2
Category Code
MBA
Unit Box Height
0.055
Unit Box Length
0.265
Unit Box Width
0.265
Units per Shipping Box
10
Unit Calculated Volume
0.004628 cubm
Unit Calculated Weight
0.955 kg
Summary
GIGABYTE B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 30
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
265 mm
Packaging data (Package depth)
265 mm
Packaging data (Package height)
54 mm
Packaging data (Package weight)
947 g
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
870 g
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Dark brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Packaging content (Screws included)
Yes
Processor (Processor manufacturer)
AMD
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory)
128 GB
Memory (Memory channels)
Dual-channel
Network (LAN controller)
Realtek RTL8111H
Features (Cooling type)
Passive
Battery (Battery weight)
3 g
Processor (Compatible processor series)
AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Processor (Processor socket)
Socket AM4
Processor (Supported processor sockets)
Socket AM4
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
4733 MHz
Memory (Supported memory clock speeds)
2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Memory (Supported memory types)
DDR4-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
6
Storage controllers (Supported storage drive interfaces)
M.2,PCI Express 3.0,PCI Express 4.0,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
2
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
2
Network (Ethernet interface type)
Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
AMD B550
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
2
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10
Storage controllers (RAID support)
Yes
Rear panel I/O ports (DisplayPort version)
1.4
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
4
Features (Audio chip)
Realtek ALC1220-VB
Features (Power source type)
ATX
Graphics (DirectX version)
12.0
Features (PC health monitoring)
Fan/Temperature/Voltage
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
ECC & Non-ECC
Memory (Maximum internal memory per slot)
32 GB
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
5120 x 2880 pixels
Internal I/O (Number of CPU fan connectors)
1
Internal I/O (Number of RGB LED pin headers)
5
Internal I/O (Serial port headers)
1
Expansion slots (1st M.2 highest PCI Express generation)
4.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
3.0
Expansion slots (2nd M.2 largest key size)
2280
Expansion slots (PCI Express x16 (Gen 3.x) slots)
1
Internal I/O (Number of EPS power connectors (8-pin))
1
Expansion slots (PCI Express x1 (Gen 3.x) slots)
1
Eriviited
ean13
4719331870454
MPN
1447475
