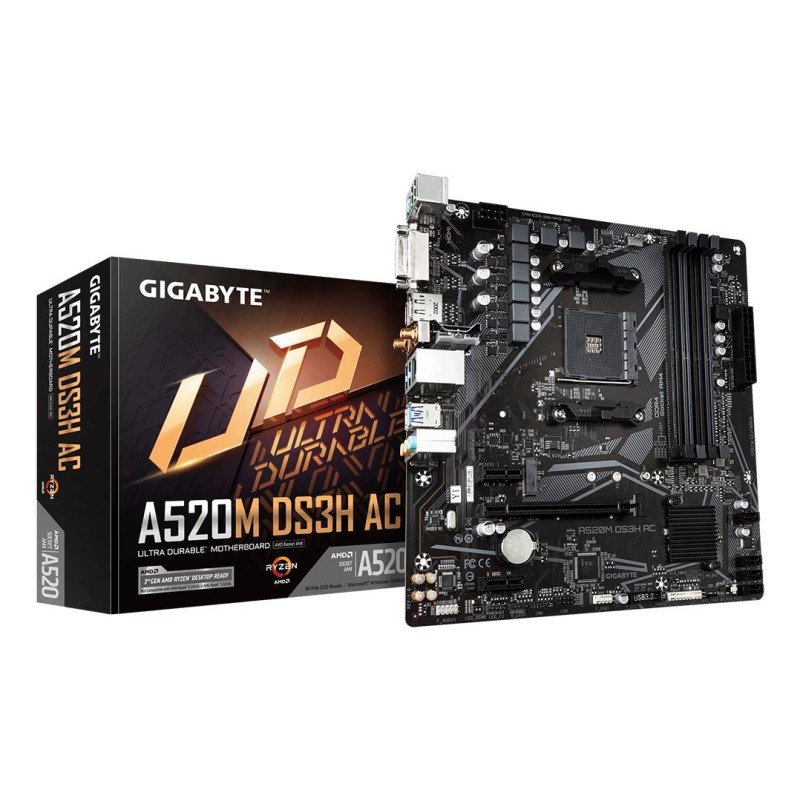

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HAC1.4

Lisainfo

Müüja koduleht

https://www.gigabyte.com/

Garantija

36

Mudel

A520M DS3H AC 1.4

Category Code

MBA

Unit Box Height

0.07

Unit Box Length

0.27

Unit Box Width

0.27

Units per Shipping Box

10

Unit Calculated Volume

0.0060088 cubm

Unit Calculated Weight

1.03 kg

Summary

GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 300

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

270 mm

Packaging data (Package depth)

268 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1210 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Other features (Weight)

720 g

Network (Bluetooth)

Yes

Network (Bluetooth version)

4.2

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Processor (Processor manufacturer)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 5 (802.11ac)

Features (Component for)

PC

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Network (WLAN controller model)

Intel Dual Band Wireless-AC 3168

Battery (Battery weight)

3 g

Processor (Compatible processor series)

AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series

Processor (Processor socket)

Socket AM4

Processor (Supported processor sockets)

Socket AM4

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

4733 MHz

Memory (Supported memory clock speeds)

2133/2400/2667/2933/3200/3300/3333/3400/3466/3600/3733/3800/3866/4000/4400/4733 MHz

Memory (Supported memory types)

DDR4-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

5

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

2

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

2

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD A520

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11

Expansion slots (Number of M.2 (M) slots)

1

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Features (Power source type)

ATX

Internal I/O (Total number of SATA connectors)

4

Features (PC health monitoring)

Fan/Temperature/Voltage

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

32 GB

Graphics (Discrete graphics support)

Yes

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

5120 x 2880 pixels

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of RGB LED pin headers)

2

Internal I/O (Serial port headers)

1

Expansion slots (1st M.2 highest PCI Express generation)

3.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Internal I/O (Number of EPS power connectors (8-pin))

1

Packaging content (Antenna included)

Yes

Graphics (Number of displays supported)

3

Expansion slots (PCI Express x1 (Gen 3.x) slots)

2

Processor (Maximum number of SMP processors)

1

Rear panel I/O ports (DVI-D ports quantity)

1

Eriviited

ean13

4719331810696

MPN

1448100
