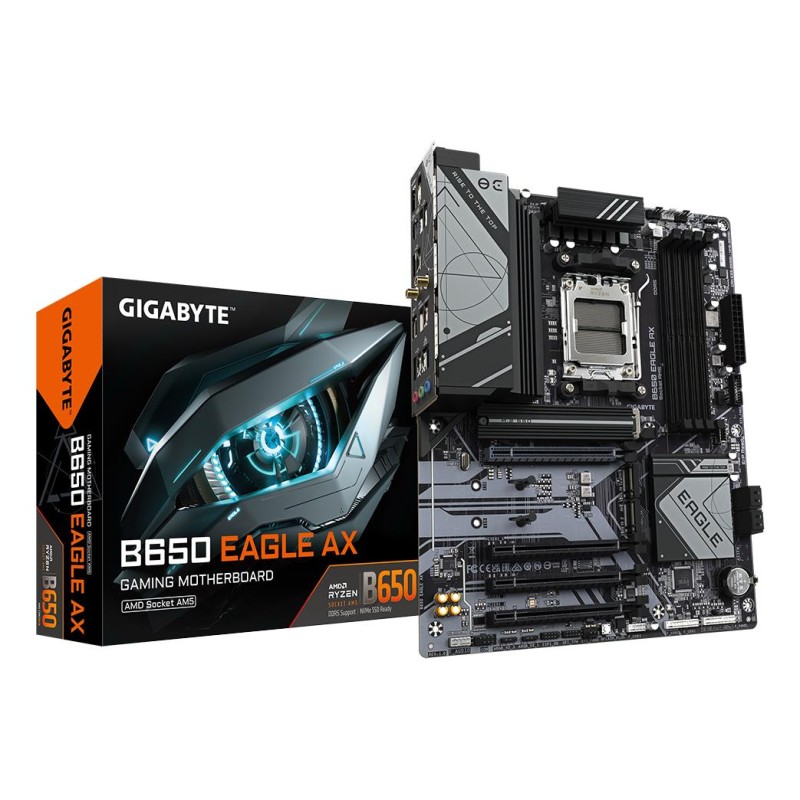

Mainboard|GIGABYTE|AMD B650|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|B650EAGLEAX1

Lisainfo

Müüja koduleht

https://www.gigabyte.com/

Garantija

36

Category Code

MBA

Unit Box Height

0.08

Unit Box Length

0.27

Unit Box Width

0.34

Units per Shipping Box

8

Unit Calculated Volume

0.009973 cubm

Unit Calculated Weight

1.92 kg

CnCode

84733020

Summary

GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor seri

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

335 mm

Packaging data (Package depth)

270 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

1943 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Features (Product colour)

Brown

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Network (WLAN controller model)

Realtek RTL8852CE

Network (LAN controller)

Realtek RTL8111H

Battery (Battery weight)

3 g

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

7600 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

7

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

3

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

3

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

6

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

2

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B650

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

3

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Features (Audio chip)

Realtek ALC897

Features (Power source type)

ATX

Graphics (DirectX version)

12.0

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Graphics (Discrete graphics support)

Yes

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of water pump connectors)

2

Internal I/O (Serial port headers)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)

1

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

25110

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

22110

Expansion slots (PCI Express x16 (Gen 3.x) slots)

3

Packaging content (Antenna included)

Yes

Eriviited

ean13

4719331860158

MPN

1453819
