Kirjeldus

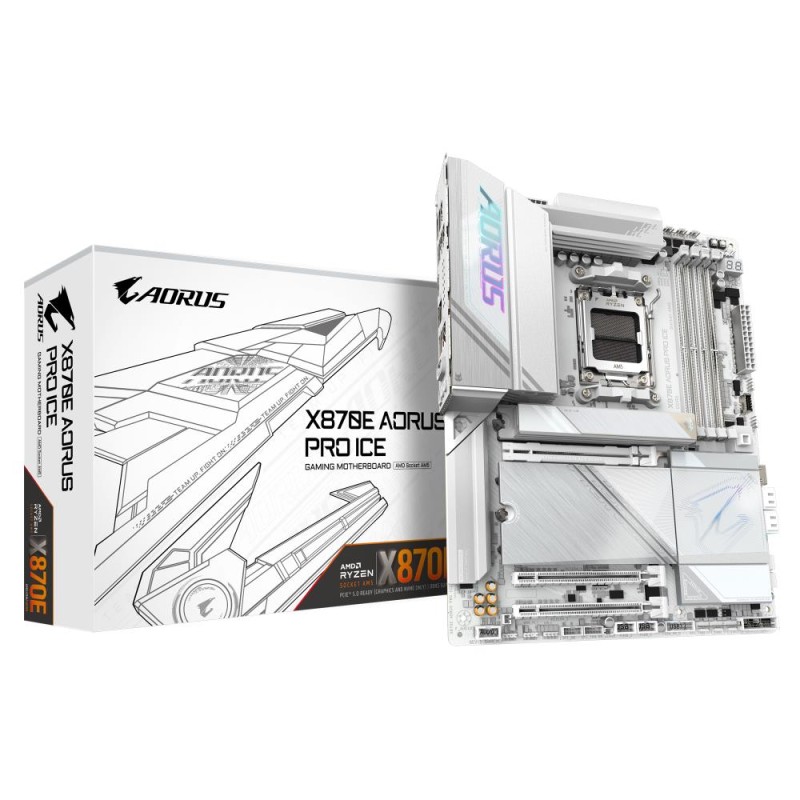

X870E AORUS PRO ICE
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000/ 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
Üldine informatsioon
X870E AORUS PRO ICE 1.1
4 Tooted
Lisainfo
- Müüja koduleht
- www.gigabyte.com/Motherboard/X870E-AORUS-PRO-ICE kf
- Vormitegur
- ATX
- Pistikupesa
- SAM5
- Sisend / väljund pistikud (USB 2.0)
- 2
- Liides (SATA)
- Yes
- Mälu tüüp
- DDR5
- Sageduse kiirus
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- Liides (USB 2.0)
- Yes
- Sisend / väljund pistikud (RJ45)
- 1
- Sisend / väljund pistikud (HDMI)
- 1
- Integreeritud LAN
- 2.5 Gigabit
- Sisend / väljund pistikud (optiline S / PDIF)
- 1
- Liides (Bluetooth)
- Yes
- Liides (WiFi)
- Yes
- Kiibistik
- AMD X870E
- Integreeritud heli
- Yes
- Integreeritud video
- Depending on CPU
- Mälupesad
- 4
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 5, 10
- TPM
- Header
- Laienduspesad (M.2)
- 4
- Sisend / väljund pistikud (heliport)
- 2
- Liides (USB-C)
- Yes
- Laienduspesad (PCI-Express 3.0 4x)
- 1
- Garantija
- 36
- Sisend / väljund pistikud (USB 3.2)
- 7
- Liides (USB 3.2)
- Yes
- Mudel
- X870E AORUS PRO ICE (rev. 1.1)
- Category Code
- MBA
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Expansion slots (PCI-Express 4.0 4x)
- 1
- Unit Box Height
- 0.27
- Unit Box Length
- 0.345
- Unit Box Width
- 0.08
- Input/Output connectors (USB-C)
- 2
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.0106 cubm
- Product Net Weight
- 2 kg
- Unit Calculated Weight
- 2.65 kg
Eriviited
- ean13
- 4719331864798
- MPN
- 1437342
