Kirjeldus

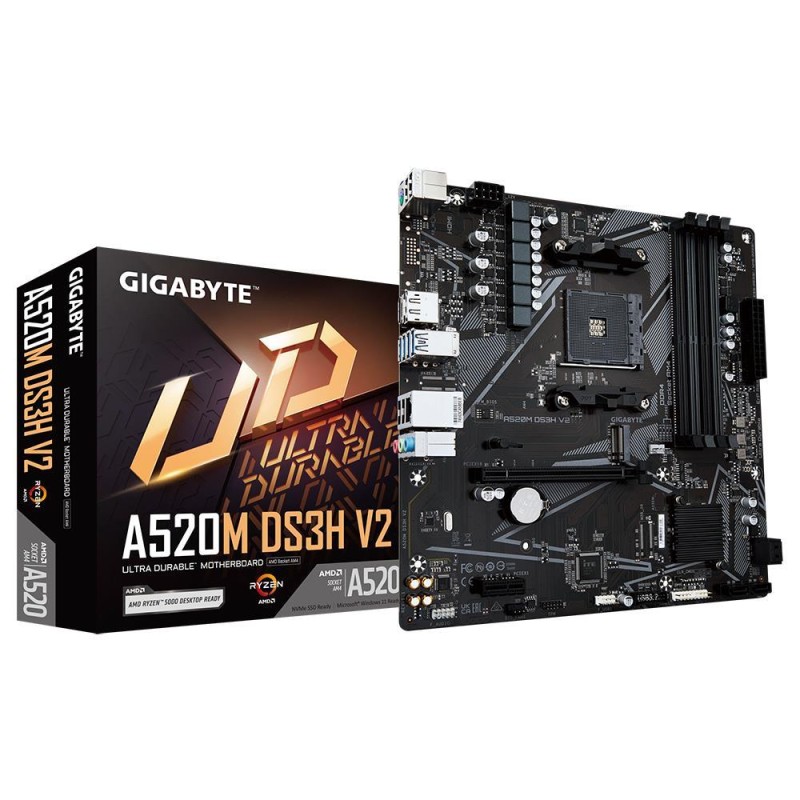

GIGABYTE A520M DS3H V2
AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
Üldine informatsioon
A520MDS3HV2
30 Tooted
Lisainfo
- Müüja koduleht
- www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10 kf
- Vormitegur
- Micro-ATX
- Pistikupesa
- SAM4
- Sisend / väljund pistikud (USB 2.0)
- 2
- Liides (SATA)
- Yes
- Mälu tüüp
- DDR4
- Sageduse kiirus
- 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
- Liides (USB 2.0)
- Yes
- Sisend / väljund pistikud (RJ45)
- 1
- Sisend / väljund pistikud (HDMI)
- 1
- Integreeritud LAN
- Yes
- Kiibistik
- AMD A520
- Integreeritud heli
- Yes
- Integreeritud video
- Depending on CPU
- Mälupesad
- 4
- Sisend / väljund pistikud (PS / 2)
- 1
- RAID
- SATA 0, 1, 10
- TPM
- Header
- Laienduspesad (PCI-Express 3.0 16x)
- 1
- Laienduspesad (PCI-Express 3.0 1x)
- 1
- Laienduspesad (M.2)
- 1
- Sisend / väljund pistikud (DisplayPort)
- 1
- Sisend / väljund pistikud (heliport)
- 3
- Garantija
- 36
- Sisend / väljund pistikud (USB 3.2)
- 4
- Liides (USB 3.2)
- Yes
- Mudel
- A520M DS3H V2
- Category Code
- MBA
- Unit Box Height
- 0.055
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004711 cubm
- Product Net Weight
- 0.7 kg
- Unit Calculated Weight
- 0.89 kg
Eriviited
- ean13
- 4719331854690
- MPN
- 1406559
