Описание

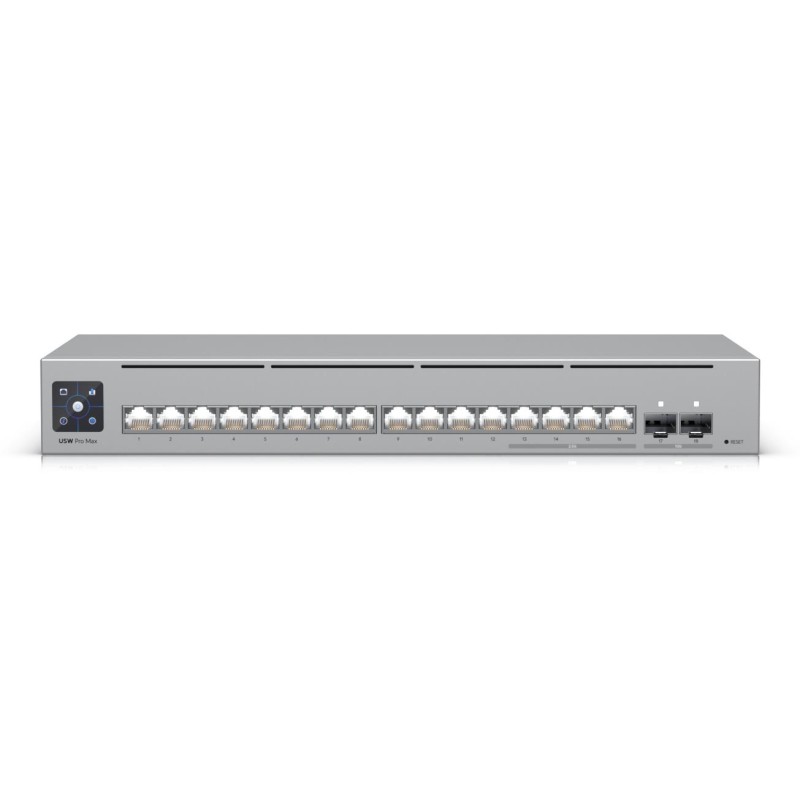

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
Спецификации
USW-PRO-MAX-16
5 шт.
Дополнительная информация
- Сайт продавца
- https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-16
- Название модели
- Pro Max 16
- Гарантия
- 12
- Модель
- USW-Pro-Max-16
- Код категории
- SWI
- Высота блока
- 0.245
- Длина блока
- 0.51
- Ширина блока
- 0.11
- Units per Shipping Box
- 4
- Unit Calculated Volume
- 0.0167344 cubm
- Unit Calculated Weight
- 3.4625 kg
- Summary
- Ubiquiti Pro Max 16. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 84 Gbit/s. Networking standards: IEEE
- Weight & dimensions (Width)
- 325.1 mm
- Weight & dimensions (Depth)
- 160 mm
- Weight & dimensions (Height)
- 43.7 mm
- Weight & dimensions (Weight)
- 1950 g
- Packaging content (Cables included)
- Power
- Certificates (Compliance certificates)
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
- Operational conditions (Operating temperature (T-T))
- -5 - 40 C
- Design (Product colour)
- Grey
- Power (Power consumption (max))
- 25 W
- Design (Housing material)
- SGCC
- Operational conditions (Operating relative humidity (H-H))
- 10 - 90 %
- Power (Input current)
- 5 A
- Design (Form factor)
- 1U
- Design (LED indicators)
- Link/Network/Speed/Status
- Design (Reset button)
- Yes
- Network (Networking standards)
- IEEE 802.1x
- Design (Display type)
- LCM
- Power (Input voltage)
- 4.8 - 5.2 V
- Packaging content (Rack mount kit)
- Yes
- Management features (Switch layer)
- L3
- Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
- 16
- Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
- 2.5G Ethernet (100/1000/2500)
- Network (10G support)
- Yes
- Data transmission (Forwarding rate)
- 62 Mpps
- Data transmission (Switching capacity)
- 84 Gbit/s
- Data transmission (Throughput)
- 42 Gbit/s
- Design (Rack mounting)
- Yes
- Power (Power supply included)
- Yes
- Power over Ethernet (PoE) (Power over Ethernet (PoE))
- No
- Ports & interfaces (SFP+ module slots quantity)
- 2
- Network (Broadcast storm control)
- Yes
- Network (Flow control support)
- Yes
- Network (Link aggregation)
- Yes
- Network (Port mirroring)
- Yes
- Network (VLAN support)
- Yes
- Security (Authentication type)
- IEEE 802.1x
- Ports & interfaces (Power connector)
- AC/DC
- Data transmission (Static route)
- Yes
- Security (DHCP features)
- DHCP guarding/DHCP relay/DHCP server/DHCP snooping
- Data transmission (MAC address table)
- 16000 entries
- Data transmission (Packet buffer memory)
- 1.5 MB
- Data transmission (Jumbo frames support)
- Yes
- Design (Stackable)
- Yes
- Operational conditions (Heat dissipation)
- 85.3 BTU/h
- Performance (Fanless)
- Yes
- Management features (Quality of Service (QoS) support)
- Yes
- Ports & interfaces (Gigabit Ethernet (copper) ports quantity)
- 12
- Network (Number of VLANs)
- 1000
- Network (Virtual LAN features)
- Voice VLAN
- Power (Redundant power supply (RPS) support)
- Yes
- Security (Loop protection)
- Yes
- Ports & interfaces (2.5G Ethernet (copper) ports quantity)
- 4
- Network (Rate limiting)
- Yes
- Security (IGMP snooping)
- Yes
- Security (Access Control List (ACL))
- Yes
- Network (IPv4 routes)
- 512
Специальные референции
- ean13
- 810084694565
- MPN
- 1416358
