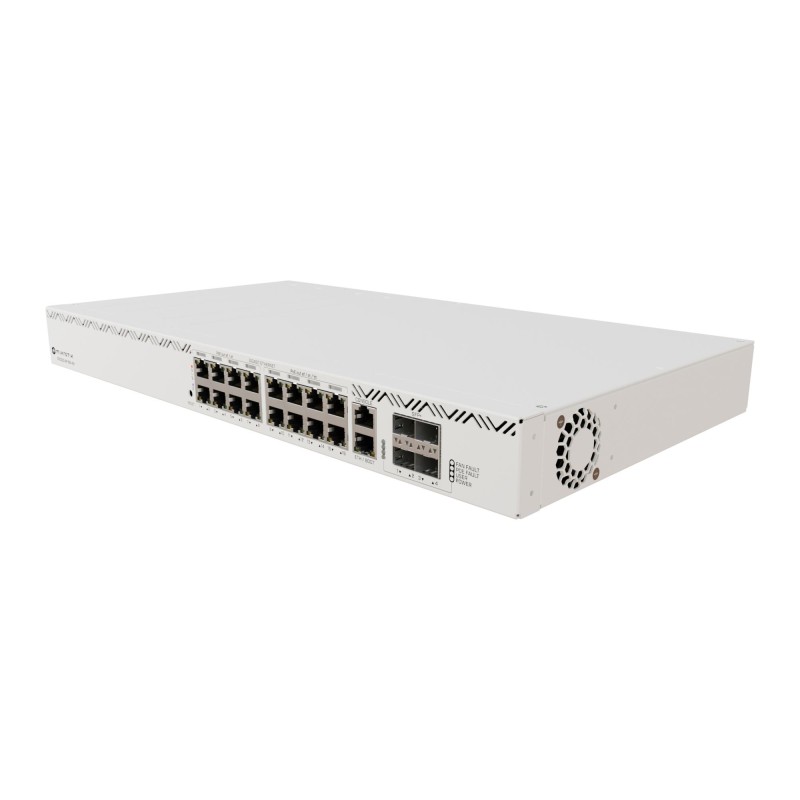

CRS320-8P-8B-4S+RM, 17xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 4xSFP+ module slots quantity, Console port RJ-45, Yes, Rack mounting Yes, Power source AC, Power supply included Yes, Power consumption (typical) 36 W, Power over Ethernet (PoE) Yes, Width 444 mm, Depth 235 mm, Height 44 mm
CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!
4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.
There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios. Please refer to the official Help page. .
Type Managed, Switch layer L3, Web-based management Yes, 16xSFP+ module slots quantity, Console port RJ-45, Yes, Port mirroring Yes, Rack mounting Yes, Form factor 1U, Product colour Grey, 2xNumber of power supply units, Width 443 mm, Depth 224 mm, Height 44 mm
NSW-G8-01, Type Unmanaged, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Product colour White, Power source DC, Power supply included Yes, Width 84 mm, Depth 90 mm, Height 62 mm, Weight 200 g
Type Unmanaged, Quality of Service (QoS) support Yes, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Full duplex Yes, Switching capacity 16 Gbit/s, Forwarding rate 11.9 Mpps, Product colour Black, Power source DC, Power supply included Yes, Width 158 mm, Depth 101 mm,...
Type Unmanaged, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), Full duplex Yes, Switching capacity 10 Gbit/s, Form factor DIN rail, Product colour Black, DIN rail mounting Yes, Power source DC, Power consumption (typical) 1 W, Width 113 mm, Depth 50 mm, Height 28 mm, Weight...
CRS320-8P-8B-4S+RM, 17xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 4xSFP+ module slots quantity, Console port RJ-45, Yes, Rack mounting Yes, Power source AC, Power supply included Yes, Power consumption (typical) 36 W, Power over Ethernet (PoE) Yes, Width 444 mm, Depth 235 mm, Height 44 mm
