Kirjeldus

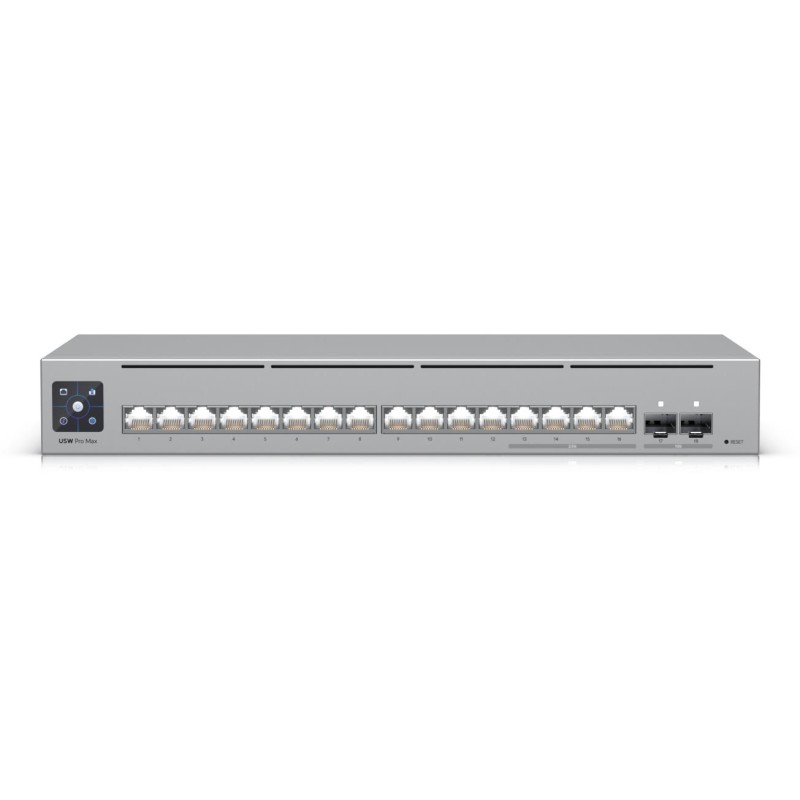

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (4) 2.5 GbE RJ45 ports (12) GbE RJ45 ports (2) 10G SFP+ ports Versatile desktop, wall, and rack** mounting Silent, fanless cooling system
Üldine informatsioon
Tootekood
USW-PRO-MAX-16
Tarneaeg 2-5 tööpäeva.
5 Tooted
Lisainfo
Müüja koduleht
https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-16
Mudeli nimi
Pro Max 16
Garantija
12
Mudel
USW-Pro-Max-16
Category Code
SWI
Unit Box Height
0.245
Unit Box Length
0.51
Unit Box Width
0.11
Units per Shipping Box
4
Unit Calculated Volume
0.0167344 cubm
Unit Calculated Weight
3.4625 kg
Summary
Ubiquiti Pro Max 16. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 84 Gbit/s. Networking standards: IEEE
Weight & dimensions (Width)
325.1 mm
Weight & dimensions (Depth)
160 mm
Weight & dimensions (Height)
43.7 mm
Weight & dimensions (Weight)
1950 g
Packaging content (Cables included)
Power
Certificates (Compliance certificates)
CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
Operational conditions (Operating temperature (T-T))
-5 - 40 C
Design (Product colour)
Grey
Power (Power consumption (max))
25 W
Design (Housing material)
SGCC
Operational conditions (Operating relative humidity (H-H))
10 - 90 %
Power (Input current)
5 A
Design (Form factor)
1U
Design (LED indicators)
Link/Network/Speed/Status
Design (Reset button)
Yes
Network (Networking standards)
IEEE 802.1x
Design (Display type)
LCM
Power (Input voltage)
4.8 - 5.2 V
Packaging content (Rack mount kit)
Yes
Management features (Switch layer)
L3
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
16
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
2.5G Ethernet (100/1000/2500)
Network (10G support)
Yes
Data transmission (Forwarding rate)
62 Mpps
Data transmission (Switching capacity)
84 Gbit/s
Data transmission (Throughput)
42 Gbit/s
Design (Rack mounting)
Yes
Power (Power supply included)
Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE))
No
Ports & interfaces (SFP+ module slots quantity)
2
Network (Broadcast storm control)
Yes
Network (Flow control support)
Yes
Network (Link aggregation)
Yes
Network (Port mirroring)
Yes
Network (VLAN support)
Yes
Security (Authentication type)
IEEE 802.1x
Ports & interfaces (Power connector)
AC/DC
Data transmission (Static route)
Yes
Security (DHCP features)
DHCP guarding/DHCP relay/DHCP server/DHCP snooping
Data transmission (MAC address table)
16000 entries
Data transmission (Packet buffer memory)
1.5 MB
Data transmission (Jumbo frames support)
Yes
Design (Stackable)
Yes
Operational conditions (Heat dissipation)
85.3 BTU/h
Performance (Fanless)
Yes
Management features (Quality of Service (QoS) support)
Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity)
12
Network (Number of VLANs)
1000
Network (Virtual LAN features)
Voice VLAN
Power (Redundant power supply (RPS) support)
Yes
Security (Loop protection)
Yes
Ports & interfaces (2.5G Ethernet (copper) ports quantity)
4
Network (Rate limiting)
Yes
Security (IGMP snooping)
Yes
Security (Access Control List (ACL))
Yes
Network (IPv4 routes)
512
Eriviited
ean13
810084694565
MPN
1416358
