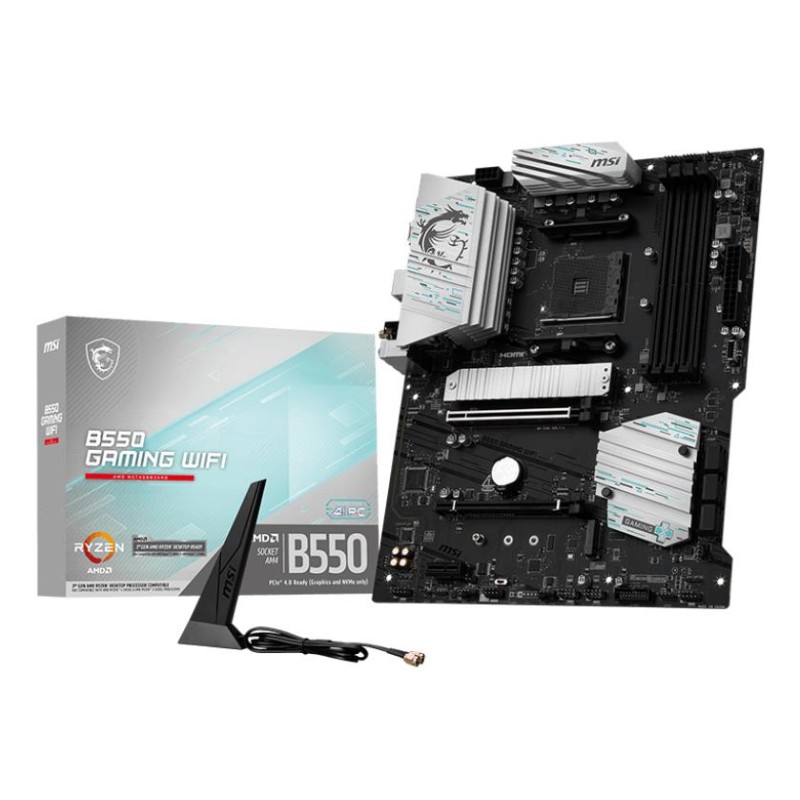

Mainboard|MSI|AMD B550|Socket AM4|ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B550GAMINGWIFI

Код B550 GAMING WIFI

Марка MSI

132,40 €

С НДС

Доставка 1-5 раб.дня

Количество

Laos

Срок доставки 2-5 рабочих дней.: 30 шт.

Описание
Спецификации

Описание

The B550 GAMING WIFI is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

One Finger for EZ GPU Installation
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

Clear CMOS Button
Restore the BIOS to the default settings – helpful in 99% of the cases to successfully boot again.

10+2+1 Duet Rail POWER system
Unleash and sustain maximum performance with a flagship VRM design built with a total of 10 + 2 + 1 digital power phases. With a 8-pin power connector, B550 GAMING WIFI is ready for the challenge of heavy-loading tasks.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The PCH heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

FAST AND FUTURE-READY STORAGE
MSI Gaming series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
Ultra Performance: 10+2+1 Phase Duet Rail Power System (55A DrMOS), 8-pin CPU power connector, Core Boost, Memory Boost, 4-layer PCB with 2oz thickened copper
Supports DDR4 Memory, up to 4400(OC) MHz
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
High-speed Connectivity: Wi-Fi 5 Solution with 1G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Спецификации

Марка MSI

Код B550 GAMING WIFI

Срок доставки 2-5 рабочих дней. 30 шт.

Дополнительная информация

Сайт продавца: https://www.msi.com/Motherboard/B550-GAMING-WIFI
Гарантия: 36
Код категории: MBA
Высота блока: 0.085
Длина блока: 0.34
Ширина блока: 0.27
Units per Shipping Box: 1
Unit Calculated Volume: 0.007803 cubm
Unit Calculated Weight: 1.64 kg
Summary: MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive inte
Weight & dimensions (Width): 304 mm
Weight & dimensions (Depth): 243.84 mm
Packaging content (Cables included): SATA
Logistics data (Harmonized System (HS) code): 84733020
Network (Bluetooth): Yes
Network (Bluetooth version): 5.0
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): Wi-Fi 5 (802.11ac)
Packaging content (Drivers included): Yes
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 5 (802.11ac)
Features (Component for): PC
Memory (Maximum internal memory): 128 GB
Memory (Memory channels): Dual-channel
Network (LAN controller): Realtek 8111H
Processor (Compatible processor series): AMD Ryzen 3000 Series
Processor (Processor socket): Socket AM4
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 2667 MHz
Memory (Supported memory clock speeds): 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800/4866 MHz
Memory (Supported memory types): DDR4-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Supported storage drive interfaces): SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 6
Internal I/O (Number of SATA III connectors): 6
Internal I/O (RGB LED pin header): Yes
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (PS/2 ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 1
Rear panel I/O ports (WiFi-AP antenna jack): 2
Network (Ethernet interface type): Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B550
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Expansion slots (Number of M.2 (M) slots): 2
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
Internal I/O (Chassis intrusion connector): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (S/PDIF out port): Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Features (Audio chip): Realtek ALC897
Internal I/O (Total number of SATA connectors): 6
Features (PC health monitoring): CPU/Fan/Temperature
BIOS (ACPI version): 6.0
BIOS (Clear CMOS jumper): Yes
BIOS (System Management BIOS (SMBIOS) version): 2.8
Memory (ECC сompatibility): ECC & Non-ECC
Graphics (Maximum resolution): 4096 x 2160 pixels
Expansion slots (1st M.2 highest PCI Express generation): 4.0
Expansion slots (1st M.2 largest key size): 22110
Expansion slots (2nd M.2 highest PCI Express generation): 3.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (PCI Express x16 (Gen 3.x) slots): 1
Expansion slots (PCI Express x1 (Gen 3.x) slots): 2
Rear panel I/O ports (Digital audio optical out): 1
Processor (Maximum number of SMP processors): 1
