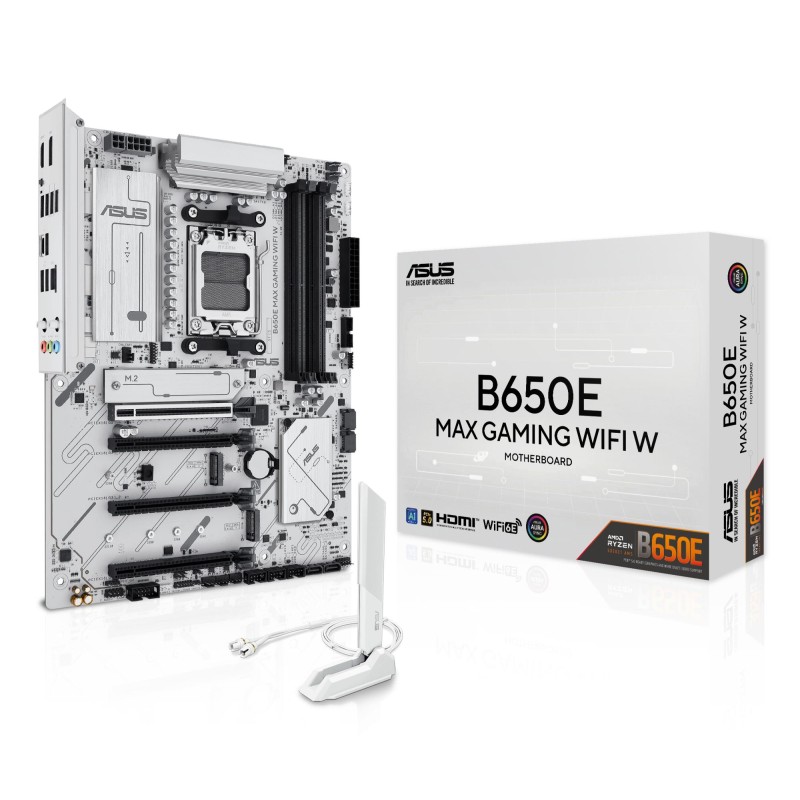

B650E MAX GAMING WIFI W
ASUS B650E series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, B650E MAX GAMING WIFI W provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® support
Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Antenna, Q-LED Core
Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
CEC Tier II ready

Спецификации

Марка ASUS

Код B650E MAX GAMING WIFI W

Дополнительная информация

Сайт продавца: https://www.asus.com/motherboards-components/motherboards/others/b650e-max-gaming-wifi-w/
Гарантия: 36
Модель: B650E MAX GAMING WIFI W
Код категории: MBA
Высота блока: 0.07
Длина блока: 0.356
Ширина блока: 0.273
Units per Shipping Box: 5
Unit Calculated Volume: 0.008022 cubm
Unit Calculated Weight: 1.82 kg
Summary: ASUS B650E MAX GAMING WIFI W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB,
Weight & dimensions (Width): 305 mm
Weight & dimensions (Depth): 244 mm
Packaging data (Package width): 353 mm
Packaging data (Package depth): 273 mm
Packaging data (Package height): 68 mm
Packaging data (Package weight): 1260 g
Packaging content (Cables included): SATA
Network (Bluetooth): Yes
Network (Bluetooth version): 5.3
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): Wi-Fi 6E (802.11ax)
Features (Product colour): White
Packaging content (Screws included): Yes
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 6E (802.11ax)
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Features (Cooling type): Passive
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 7
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 4
Internal I/O (Number of COM connectors): 1
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (S/PDIF out connector): Yes
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 3
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Line-in): Yes
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (USB 2.0 ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 3
Rear panel I/O ports (WiFi-AP antenna jack): 1
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B650
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 10 x64/Windows 11
Expansion slots (Number of M.2 (M) slots): 3
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (Chassis intrusion connector): Yes
Internal I/O (Thunderbolt headers): 1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Memory (ECC сompatibility): ECC & Non-ECC
Internal I/O (Number of CPU fan connectors): 1
Internal I/O (Number of RGB LED pin headers): 3
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 2280
Expansion slots (2nd M.2 highest PCI Express generation): 4.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 22110
Expansion slots (PCI Express x16 (Gen 3.x) slots): 2
Packaging content (Antenna included): Yes
Internal I/O (Peripheral (Molex) power connectors (4-pin)): 1
