Mainboard|ASUS|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPo

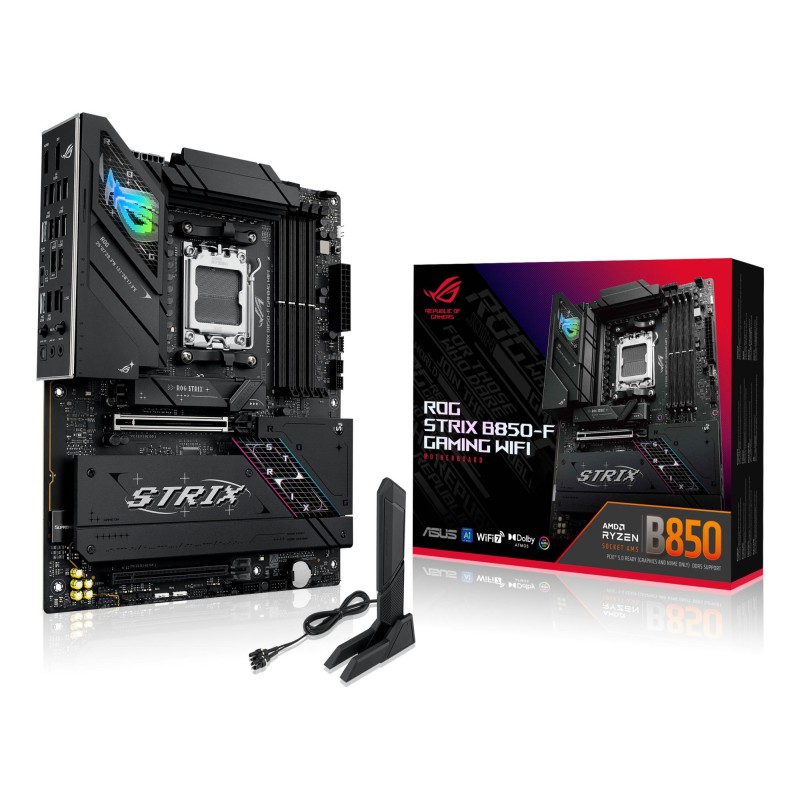

Код ROG STRIX B850-F GAMING WIFI

Марка ASUS

305,81 €

С НДС

Доставка 1-5 раб.дня

Количество

Последний!

Срок доставки 2-5 рабочих дней.: 1 Шт.

Описание
Спецификации

Описание

The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.

ASUS AI INTELLIGENCE

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
*Availability of ASUS AI Advisor may vary by region.
**AI Advisor functions may vary by platform.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.

OVERCLOCKING

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

MEMORY

DDR5 DOMINATION
The Strix B850-F is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

ROG STRIX ULTIMATE POWER DESIGN
16(80A)+2(80A)+2(80A) Power Stages

PLAY IN STYLE

UNDENIABLY ROG STRIX
The ROG Strix B850-F is sleek and understated, empowering you to seamlessly combine it with a wide range of system components. Its deep black PCB and matching metallic heatsinks create a dark and intense look, while a touch of RGB lighting on the I/O shroud lets you either stay under the radar or make a bold statement.

OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, a Strix B850 motherboard delivers. With USB 20Gbps onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD 800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Dare to Be Green
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.

Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.

1. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.
© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.

Спецификации

Марка ASUS

Код ROG STRIX B850-F GAMING WIFI

Срок доставки 2-5 рабочих дней. 1 Шт.

Дополнительная информация

Сайт продавца: https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-f-gaming-wifi/
Гарантия: 36
Модель: ROG STRIX B850-F GAMING WIFI
Код категории: MBA
Высота блока: 0.273
Длина блока: 0.355
Ширина блока: 0.07
Units per Shipping Box: 4
Unit Calculated Volume: 0.008131 cubm
Unit Calculated Weight: 2.42 kg
CnCode: 84733020
Summary: ASUS ROG STRIX B850-F GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 19
Weight & dimensions (Width): 305 mm
Weight & dimensions (Depth): 244 mm
Packaging data (Package width): 353 mm
Packaging data (Package depth): 273 mm
Packaging data (Package height): 68 mm
Packaging data (Package weight): 2060 g
Packaging content (Cables included): SATA
Other features (Weight): 1630 g
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): Wi-Fi 7 (802.11be)
Features (Product colour): Black
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Memory (Maximum internal memory): 192 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 8000 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 2
Storage controllers (Number of storage drives supported): 6
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 4
Internal I/O (Number of SATA III connectors): 2
Internal I/O (RGB LED pin header): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 1
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Line-in): Yes
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Rear panel I/O ports (WiFi-AP antenna jack): 2
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B850
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 11
Expansion slots (Number of M.2 (M) slots): 4
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
BIOS (Clear CMOS button): Yes
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (Thunderbolt headers): 1
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (DisplayPort version): 1.4
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (S/PDIF out port): Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Features (Audio chip): Realtek ALC4080
Features (Power source type): ATX
Other features (Quick installation guide): Yes
Memory (ECC сompatibility): ECC & Non-ECC
Graphics (Maximum resolution): 7680 x 4320 pixels
Internal I/O (Number of CPU fan connectors): 2
Internal I/O (Number of RGB LED pin headers): 3
Internal I/O (Number of water pump connectors): 1
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 2280
Expansion slots (2nd M.2 highest PCI Express generation): 5.0
Expansion slots (2nd M.2 largest key size): 22110
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 2280
Internal I/O (Number of EPS power connectors (8-pin)): 2
Packaging content (Antenna included): Yes
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity): 1
Internal I/O (Number of temperature sensor headers): 1
Rear panel I/O ports (Digital audio optical out): 1
Expansion slots (4th M.2 highest PCI Express generation): 4.0
Expansion slots (4th M.2 largest key size): 2280
