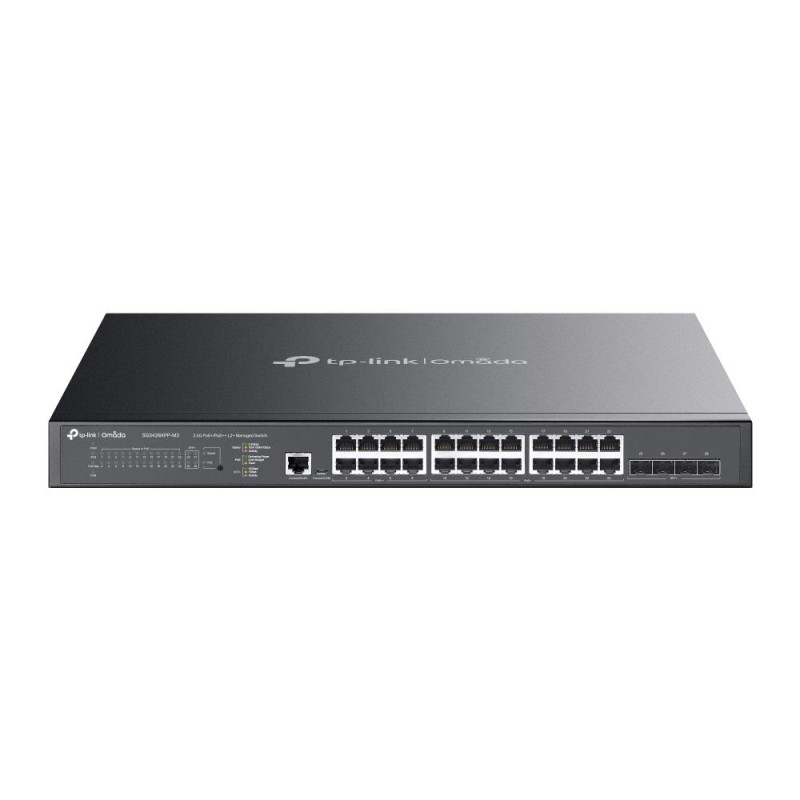

Switch|TP-LINK|Omada|SG3428XPP-M2|Desktop/pedestal|Rack|24x2.5GbE|4xSFP+|1xConsole|1|PoE+ ports 16|500 Watts|SG3428XPP-M2
  • Switch|TP-LINK|Omada|SG3428XPP-M2|Desktop/pedestal|Rack|24x2.5GbE|4xSFP+|1xConsole|1|PoE+ ports 16|500 Watts|SG3428XPP-M2

Switch|TP-LINK|Omada|SG3428XPP-M2|Desktop/pedestal|Rack|24x2.5GbE|4xSFP+|1xConsole|1|PoE+ ports 16|500 Watts|SG3428XPP-M2

SG3428XPP-M2
TP-LINK
Series Omada | PoE+ ports 16 | PoE power budget 500 Watts | Switching capacity 200 Gbps | Forwarding rate 148.8 Mpps | Dimensions 440×330×44 mm | Product Net Weight 5.6 kg
€908.38
VAT included
Quantity
Last items in stock
1 Item

Description

Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
16× 2.5G PoE+ ports (up to 30 W PoE out per port)
4× 10G SFP+ slots
500 W total PoE budget*
Centralised cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Learn more about Omada PoE technology >

Product Details
TP-LINK
SG3428XPP-M2
1 Item

Data sheet

Vendor Homepage
www.tp-link.com/au/business-networking/omada-switch-poe/sg3428xpp-m2/
Dimensions
440 330 44 mm
Input/Output connectors (Micro-USB)
1
Model name
SG3428XPP-M2
Ports (Console)
1
Garantija
24
Ports (SFP+)
4
Series
Omada
Mounting Type (Desktop/pedestal)
Yes
Switching capacity
200 Gbps
Category Code
SWI
Unit Box Height
0.101
Unit Box Length
0.53
Unit Box Width
0.44
Ports (2.5GbE)
24
Mounting Type (Rack)
Yes
Forwarding rate
148.8 Mpps
Primary port count
24
PoE power budget
500 Watts
PoE+ ports
16
Units per Shipping Box
1
Unit Calculated Volume
0.02355 cubm
Product Net Weight
5.6 kg
Unit Calculated Weight
6.2 kg

Specific References

EAN13
4897098689738
MPN
1420715
16 other products in the same category:
Switch|UBIQUITI|Ultra|USW-Ultra-210W (202W)|30 Watts|USW-ULTRA-210W Quick view

Reference: USW-ULTRA-210W

Brand: UBIQUITI

Switch|UBIQUITI|Ultra|USW-Ultra-210W (202W)|30 Watts|USW-ULTRA-210W

Series Ultra | Stacking up to 8 | Built-in management | PoE power budget 30 Watts | Switching capacity 16 Gbps | Power supply External | Software included Version 8.0.7 | Port isolation, Storm control, Port mirroring, Multicast / broadcast rate limiting, Flow control, Jumbo frames, Egress rate limit | Dimensions 203 x 76 x 33 mm | Product Net Weight 1.135 kg
€198.62
More
Laos

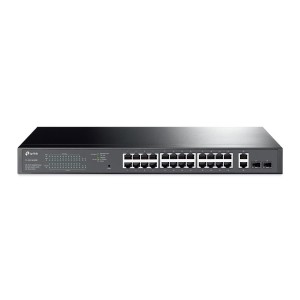

Switch|TP-LINK|Desktop/pedestal|28x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 24|250 Watts|TL-SG1428PE Quick view
