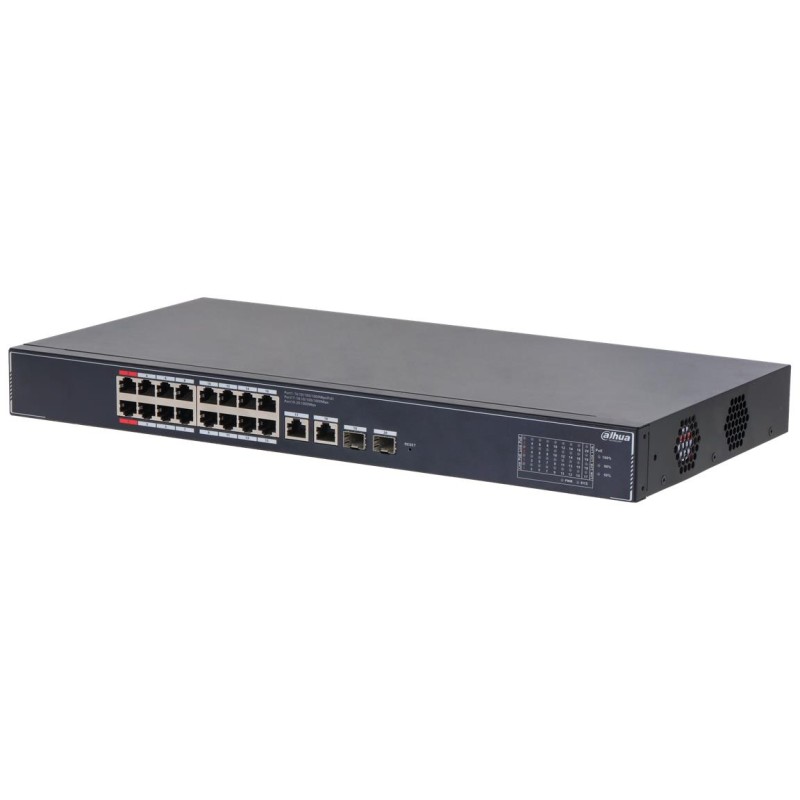

Switch|DAHUA|DH-SG4020LP|Type L2|PoE ports 16|190 Watts|SG4020LP
  • Switch|DAHUA|DH-SG4020LP|Type L2|PoE ports 16|190 Watts|SG4020LP

Switch|DAHUA|DH-SG4020LP|Type L2|PoE ports 16|190 Watts|SG4020LP

SG4020LP
DAHUA
Type L2 | PoE ports 16 | PoE power budget 190 Watts | Switching capacity 40 Gbps | Forwarding rate 29.76 Mpps | Power supply Inbuilt | Power options PoE | Operating temperature range –10 °C to +55 °C | Dimensions 440 mm × 220 mm × 44 mm | Product Net Weight 2.32 kg
€226.18
€176.42 Save €49.76
VAT included
Quantity
Laos
4 Items

Description

20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
> 16 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit ports, 2 × SFP Gigabit ports.
> 190 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.
> Wide operating temperature ranging from –10 °C to 55 °C.
> Supports VLAN, STP, RSTP and link aggregation.
> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network. Easy config to auto detect and set up network.


Product Details
DAHUA
SG4020LP
4 Items

Data sheet

Vendor Homepage
transmission.dahuasecurity.com/en/product-list/Business/Switches/PoESwitchesForIT/SG4020LP
Dimensions
440 mm 220 mm 44 mm
Model name
DH-SG4020LP
Network standard (IEEE 802.3)
Yes
Network standard (IEEE 802.3u)
Yes
Ports (10Base-T / 100Base-TX / 1000Base-T)
2
Power supply
Inbuilt
Network standard (IEEE 802.3ab)
Yes
Switch type
L2
Operating temperature range
10 C to +55 C
Garantija
36
Ports (SFP)
2
Power options
PoE
PoE ports
16
Mounting Type (Desktop/pedestal)
Yes
Power source
100 240 VAC, 47 63 Hz, max 4A
Switching capacity
40 Gbps
Category Code
SWI
Network standard (IEEE 802.3x)
Yes
Network standard (IEEE 802.3z)
Yes
Forwarding rate
29.76 Mpps
Primary port count
20
PoE power budget
190 Watts
Units per Shipping Box
1
Unit Calculated Volume
0.000732 cubm
Product Net Weight
2.32 kg
Unit Calculated Weight
2.97 kg

Specific References

EAN13
6939554904592
MPN
1449937
