IP camera with efficient H.265 / H.264 image compression algorithm for clear and smooth video streaming at maximal resolution of 5 MpxVery easy operation via mobile devices (Android / iOS), allows the users for comfortable and remote operation, and also management of the cameraThe used Wi-Fi module allows to remote communication with camera for max....

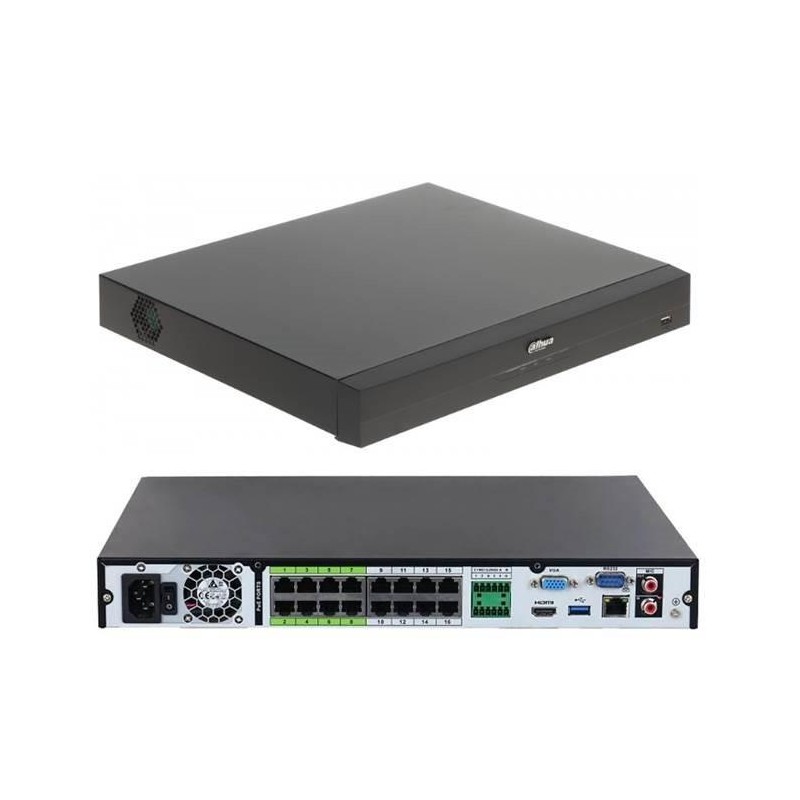

16 IP channel max, up to 32MP resolution
Max 384 Mbps incoming Bandwidth
VGA/HDMI up to 4K output, 16-channel 4 MP@30 fps
2 SATA interface up to 16TB, Gigabit LAN
PoE Port: 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE; 130W max total
No front panel controls, 4/2 alarm I/O, 1/1 Audio I/O, RS232, RS485, 2 USB
1U 19” chassis, mouse included
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus
AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting.
Other brands IP cameras supported. ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Free IP monitoring software available
Channels 4|Drives/bays 1|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 2 A|Power consumption 10 Watts|Dim. 260 mm × 232.7 mm × 47.6 mm|Temp. range –10 °C to +55 °C
Channels 16|Drives/bays 2|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375 mm × 284.3 mm × 53 mm|Temp. range –10 °C to +55 °C
