Channels 8 | Drives/bays 2 | CPU Dual-core embedded processor | Integrated LAN 10/100 | Power supply requirements DC 12V/5A | Power consumption 20 Watts | Dim. 375.0 × 329.4 x 53.0 mm | Temp. range –10 °C to +55 °C | Colour Black

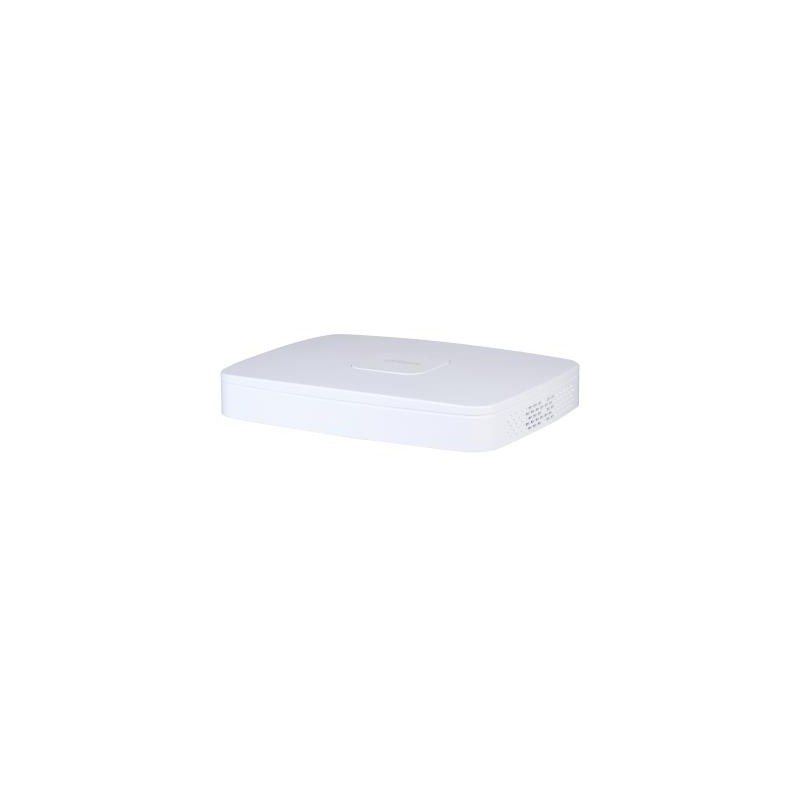

8CH Smart 1U 8PoE 1HDD Lite Network Video Recorder> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports perimeter protection and SMD Plus.
> Supports one-click arming and disarming.
Channels 4|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|5xRJ45|Power supply requirements 53 V DC, 1.22 A|Dim. 204.6 mm × 206.4 mm × 45.6 mm|Temp. range –10 °C to +55 °C
Channels 4 | Drives/bays 1 | CPU Industrial-grade processor | Integrated LAN 10/100 | Power supply requirements 12 VDC, 1.5 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C
Channels 4|Drives/bays 1|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|Power supply requirements 53 VDC, 1.226 A|Power consumption 36 Watts|Dim. 204.6 mm × 206.4 mm × 45.6 mm|Temp. range –10 °C to +55 °C|Colour White
Channels 4 | CPU Industrial-grade processor | SATA | USB 2.0 | Integrated LAN GbE Marvell 8053/Y | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 53 VDC, 1.22 A | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C | Colour Black
