NB MEMORY 16GB PC25600 DDR4/SO KVR32S22S8/16 KINGSTON
  • NB MEMORY 16GB PC25600 DDR4/SO KVR32S22S8/16 KINGSTON

NB MEMORY 16GB PC25600 DDR4/SO KVR32S22S8/16 KINGSTON

KVR32S22S8/16
KINGSTON
DDR4 | 16 GB | Unregistered (unbuffered) | CL 22 | 260-pin SO-DIMM
€182.25
VAT included
Quantity
Laos
30 Items

Description

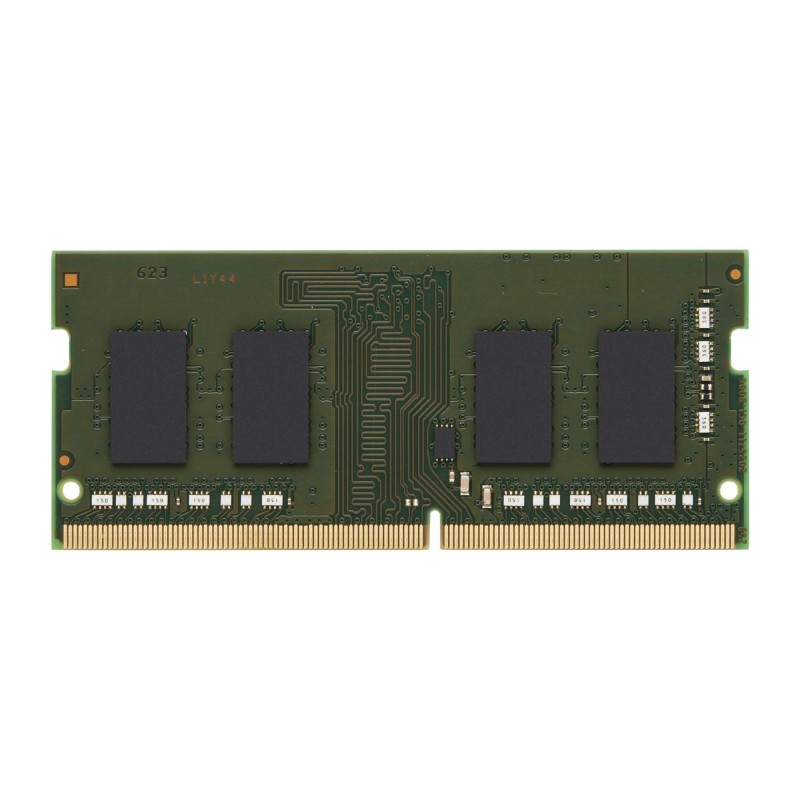

ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for
  • data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8
  • via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free
Product Details
KINGSTON
KVR32S22S8/16
30 Items

Data sheet

Vendor Homepage
https://www.kingston.com/en
Garantija
X
Model
KVR32S22S8/16
Category Code
MEB
Unit Box Height
0.01
Unit Box Length
0.08
Unit Box Width
0.045
Units per Shipping Box
1
Unit Calculated Volume
3.6E-05 cubm
Unit Calculated Weight
0.02 kg
CnCode
84733020
Summary
Kingston Technology ValueRAM . Component for: Laptop, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 260-pin SO-DIMM, CAS latency: 22
Weight & dimensions (Width)
69.6 mm
Weight & dimensions (Height)
30 mm
Logistics data (Harmonized System (HS) code)
84733020
Features (Country of origin)
Taiwan
Features (Buffered memory type)
Unregistered (unbuffered)
Features (CAS latency)
22
Features (Component for)
Laptop
Features (ECC)
No
Features (Internal memory)
16 GB
Features (Internal memory type)
DDR4
Features (Memory form factor)
260-pin SO-DIMM
Features (Memory layout (modules x size))
1 x 16 GB
Features (Memory data transfer rate)
3200 MT/s

Specific References

EAN13
740617310894
MPN
1384741
