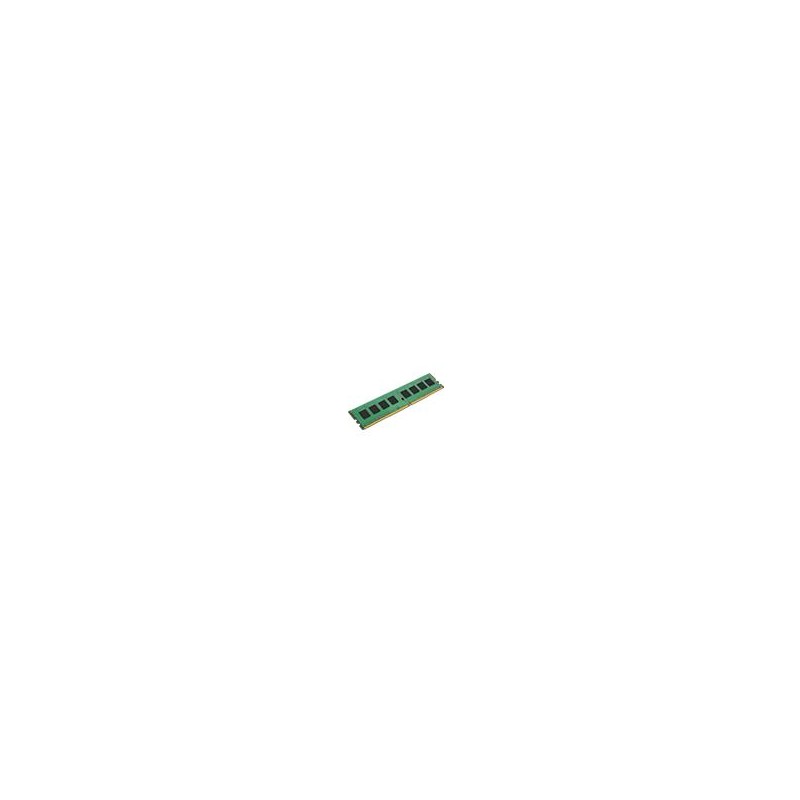

MEMORY DIMM 16GB PC25600 DDR4/KVR32N22D8/16 KINGSTON
  • MEMORY DIMM 16GB PC25600 DDR4/KVR32N22D8/16 KINGSTON

MEMORY DIMM 16GB PC25600 DDR4/KVR32N22D8/16 KINGSTON

KVR32N22D8/16
KINGSTON
DDR4 | 16 GB | Unregistered (unbuffered) | CL 22 | 1.2 V | 288-pin DIMM
€182.25
VAT included
Quantity
Laos
16 Items

Description

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • RoHS Compliant and Halogen-Free
Product Details
KINGSTON
KVR32N22D8/16
16 Items

Data sheet

Vendor Homepage
https://www.kingston.com/en
Garantija
X
Category Code
MEM
Unit Box Height
0.008
Unit Box Length
0.16
Unit Box Width
0.045
Units per Shipping Box
1
Unit Calculated Volume
5.76E-05 cubm
Unit Calculated Weight
0.03 kg
CnCode
84733020
Summary
Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, Product colour: Black, Green
Weight & dimensions (Width)
133.35 mm
Weight & dimensions (Height)
31.25 mm
Logistics data (Harmonized System (HS) code)
84733020
Operational conditions (Operating temperature (T-T))
0 - 85 C
Operational conditions (Storage temperature (T-T))
-55 - 100 C
Features (Product colour)
Black/Green
Technical details (Compliance certificates)
RoHS
Sustainability (Doesn't contain)
Halogen
Features (Buffered memory type)
Unregistered (unbuffered)
Features (CAS latency)
22
Features (Component for)
PC/Server
Features (ECC)
No
Features (Internal memory)
16 GB
Features (Internal memory type)
DDR4
Features (Memory form factor)
288-pin DIMM
Features (Memory layout (modules x size))
1 x 16 GB
Features (Memory voltage)
1.2 V
Features (Backlight)
No
Features (JEDEC standard)
Yes
Features (Memory ranking)
2
Features (Memory data transfer rate)
3200 MT/s
Features (Cooling type)
Heatsink
Features (Lead plating)
Gold
Features (Module configuration)
2048M x 64
Features (Programming power voltage (VPP))
2.5 V
Features (Refresh row cycle time)
350 ns
Features (Row active time)
32 ns
Features (Row cycle time)
45.75 ns
Features (Memory channels)
Single-channel

Specific References

EAN13
740617296051
MPN
1277204
