VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX
  • VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX
  • VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX
  • VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX
  • VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX
  • VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX
  • VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX

VOLTAGE DISTRIBUTION PANEL VDP19-3U-B STALFLEX

VDP19-3U-B
STALFLEX
  • The enclosure with a DIN rail for RACK cabinets is intended for mounting equipment located inside DIN enclosures, for RACK 19" cabinets
  • The enclosure features a DIN rail, length: 22 x 1S
  • The height of the mounted module cannot exceed 160 mm
  • The enclosure can accommodate max. 22 fuses, 1 S wide.
€24.71
VAT included
Quantity
50 Items

Description
Width: 19 "
Height: 3 U
Material: Steel - powder painted
Color: Black (RAL 9005)
Application: RACK 19"
Main features: DIN TS-35 rail Corrosion resistance Possibility to mount of 22 fuses, 1 S wide 6-point fixing to the front RACK rails 6 pcs. of M6 screws with cage nuts included Main cable entries on the back of the enclosure
Weight: 1.48 kg

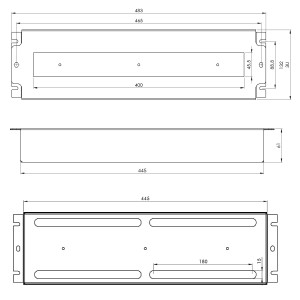

Dimensions: 445  x 127  x 59 mm Internal dimensions 485  x 130  x 61 mm External dimensions
Manufacturer / Brand: STALFLEX
Guarantee: 2 years
Product Details
STALFLEX
VDP19-3U-B
50 Items
