VOLTAGE DISTRIBUTION PANEL A19-TS-35/PD-3U

A19-TS-35/PD-3U
PULSAR

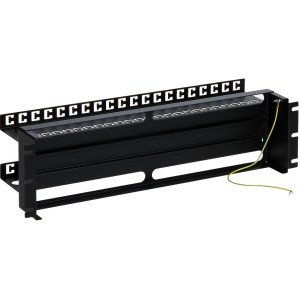

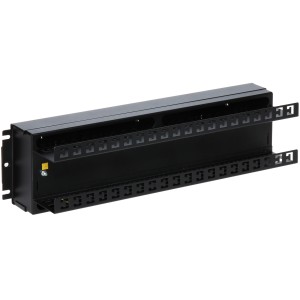

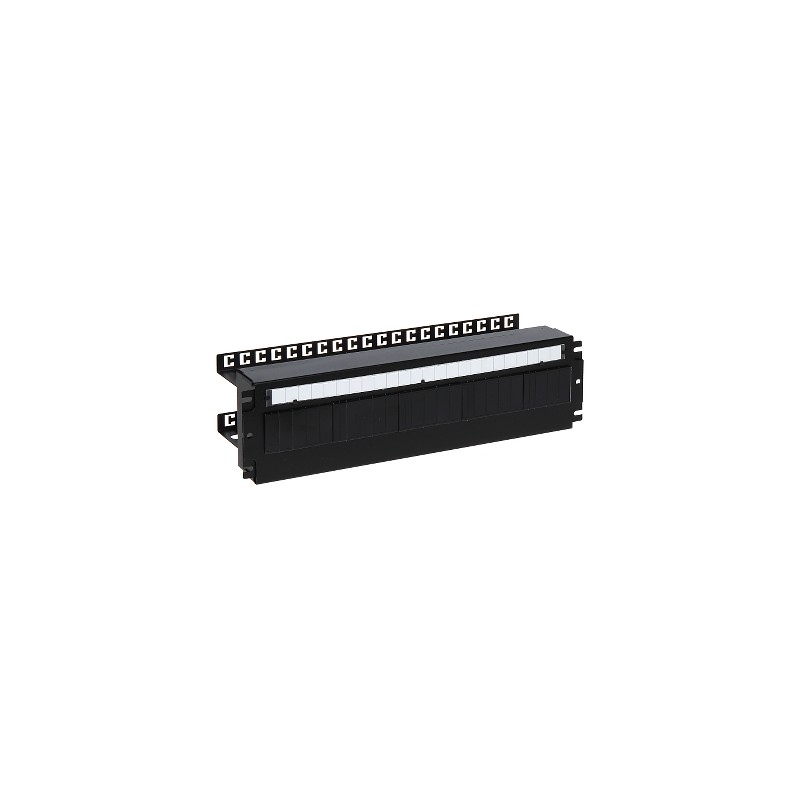

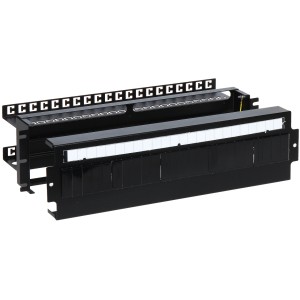

  • The A19-TS-35/PD-3U voltage distribution panel is intended for mounting electrical fuses, S type, in a RACK 19" cabinet
  • The enclosure can accommodate max. 24 fuses, 1 S wide.
€80.22
VAT included
Quantity
50 Items

Description
Width: 19 "
Height: 3 U
Material: Steel - powder painted
Color: Black (RAL 9005)
"Index of Protection": IP20
Application: RACK 19"

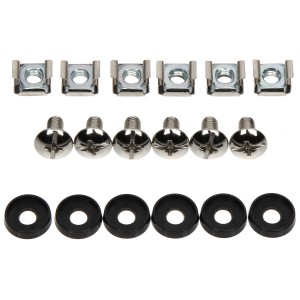

Main features: TH-35 rail Corrosion resistance Possibility to mount of 24 fuses, 1 S wide 6-point fixing to the front RACK rails 6 pcs. of M6 screws with cage nuts included The enclosure features labeling field 420x20 mm
Operation temp: -10 °C ... 40 °C
Weight: 2.06 kg

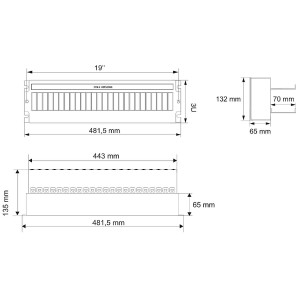

Dimensions: 445  x 125  x 55 mm Internal dimensions
481  x 132  x 135 mm External dimensions
Manufacturer / Brand: PULSAR
Guarantee: 2 years
Product Details
PULSAR
A19-TS-35/PD-3U
50 Items
