HOUSING A19-TS-35/OB-3U/160

A19-TS-35/OB-3U/160
PULSAR
  • The enclosure with a DIN rail for RACK cabinets is intended for mounting equipment located inside DIN enclosures, for RACK 19" cabinets
  • The enclosure features a DIN rail, length: 24x1S
  • The height of the mounted module cannot exceed 160 mm
  • The enclosure can accommodate max. 24 fuses, 1 S wide.
€147.29
VAT included
Quantity
2 Items

Description
Width: 19 "
Height: 3 U
Material: Steel - powder painted
Color: Black (RAL 9005)
"Index of Protection": IP20
Application: RACK 19"

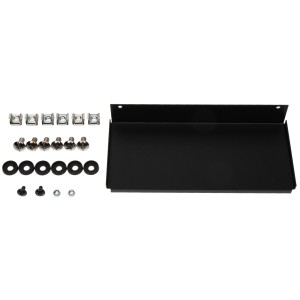

Main features: TH-35 rail Corrosion resistance Possibility to mount of 24 fuses, 1 S wide 6-point fixing to the front RACK rails 6 pcs. of M6 screws with cage nuts included The enclosure features labeling field 420x20 mm 10 rubber bushings in the top and bottom part of the enclosure Mounting plate for a 7Ah/12V battery included
Operation temp: -10 °C ... 40 °C
Weight: 3.3 kg

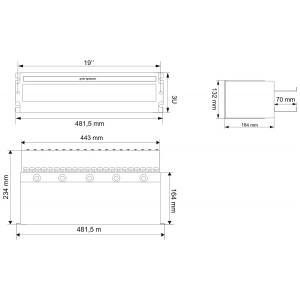

Dimensions: 445  x 125  x 155 mm Internal dimensions
481.5  x 132  x 234 mm External dimensions
Manufacturer / Brand: PULSAR
Guarantee: 2 years
Product Details
PULSAR
A19-TS-35/OB-3U/160
2 Items
