| Standard: | IP |
| Resolution: | 1920 x 1080 - 1080p , 1280 x 960 - 960p , 1280 x 720 - 720p |
| Sensor: | 1/1.8 " STARVIS™ CMOS |
| Lens: | 5.6 ... 336 mm |
| View angle: | 56.4 ° ... 1.2 ° |
| Optical zoom: | x 60 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 1000 m (Laser) |
| Memory card slot: | Micro SD memory cards up to 512GB support (possible local recording) |
| Preset rotation speed: | 160 °/s (horizontal) 60 °/s (vertical) |
| Rotation speed (manual control): | 0.1 °/s ... 160 °/s (horizontal) 0.1 °/s ... 60 °/s (vertical) |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -45 ° ... 90 ° |
| Number of presets: | 300 |
| Horizontal scan: | 5 |
| Route settings: | 8 |
| RS-485 interface: | ![]() |
| Protocols: | Pelco-D, Pelco-P, DH-SD Auto detection |
| Image compression method: | Smart H.265 / H.265 / Smart H.264 / H.264M / H.264H / MJPEG |
| Alarm inputs / outputs: | 7 / 2 |
| Video output: | CVBS - BNC |
| Audio: | Audio input, Audio output, Bi-directional audio streaming support, Audio detection |
| Main stream frame rate: | max. 25 fps @ 1080p |
| Interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | ![]() |
| Intelligent Image Analysis: | crossing the line (tripwire) - classification of people and vehicles intrusion - classification of people and vehicles abandoned/missing object detection of people gathering loitering detection fast moving parking detection Face recognition metadata support Intelligent Object Tracking Intelligent 3D Positioning System |
| Main features: | Thanks to the "Starlight" technology used, the camera only needs very low lighting to obtain a clear color image WDR - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital Noise Reduction F-DNR (Defog) - Reduction of image noise caused by precipitation BLC/HLC - Back Light / High Light Compensation ROI - improve the quality of selected parts of image Day/Night mode (color/b&w/auto) ICR - Movable InfraRed filter Auto White Balance Configurable Privacy Zones Motion Detection AGC - Automatic Gain Control Lens wiper remotely controlled via TCP/IP |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Power supply: | 36 V DC / 5 A (power adapter included) |
| Power consumption: | 25 W 69 W ( LED IR, Wiper, PTZ ) |
| Housing: | Metal |
| Color: | Gray + Black |
| "Index of Protection": | IP67 |
| Mechanical protection class: | ![]() |
| Operation temp: | -40 °C ... 70 °C |
| Weight: | 15.4 kg (with bracket) |

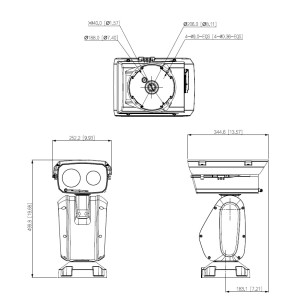

| Dimensions: | 252 x 345 x 500 mm (with bracket) |
| Manufacturer / Brand: | DAHUA |
| Supported languages: | English |
| Guarantee: | 5 years |
