| Standard: |
TCP/IP |
| Sensor: |
1/2.8 " Progressive Scan CMOS |
| Matrix size: |
4 Mpx |
| Resolution: |
2560 x 1440 - 3.7 Mpx ,
2048 x 1536 - 3 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p ,
1280 x 960 1.3 Mpx ,
1280 x 720 720p |
| Lens: |
5 ... 125 mm |
| View angle: |
52 ° ... 3 ° |
| Optical zoom: |
x 25 |
| Digital zoom: |
x 16 |
| Range of IR illumination: |
150 m |
| Video output: |
 |
| Preset rotation speed: |
400 °/s (horizontal) 300 °/s (vertical) |
| Rotation speed (manual control): |
0.1 °/s ... 300 °/s (horizontal) 0.1 °/s ... 200 °/s (vertical) |
| Horizontal rotation range: |
360 ° - continuous |
| Vertical rotation range: |
-15 ° ... 90 ° |
| RS-485 interface: |
|
| Number of presets: |
300 |
| Horizontal scan: |
 |
| Route settings: |
8 |
| Image compression method: |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |

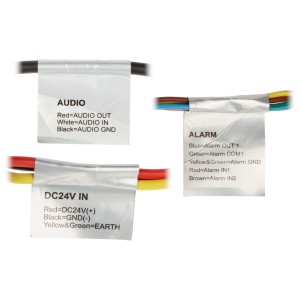

| Alarm inputs / outputs: |
2 / 1 |
| Audio: |
External microphone input Audio output Bi-directional audio streaming support Audio detection |
| Main stream frame rate: |
25 fps @ 1080p |
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
HTTP, HTTPS, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IEEE 802.1x, QoS, FTP, UPnP, ICMP, SNMP, SNMPv1/v2c/v3(MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, RTMP, TCP |
| WEB Server: |
Built-in |
| Max. number of on-line users: |
20 |
| ONVIF: |
21.12 |

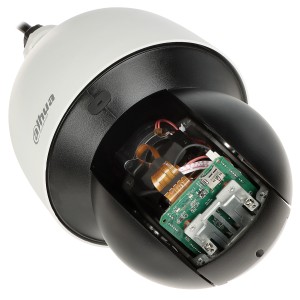

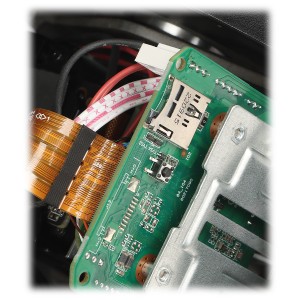

| Memory card slot: |
Micro SD memory cards up to 512GB support (possible local recording) |
| Mobile phones support: |
Port no.: 37777 or access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application |
| Default IP address: |
192.168.1.108 |
| Default admin user / password: |
admin / -
The administrator password should be set at the first start |
| Web browser access ports: |
80, 37777 |
| PC client access ports: |
37777 |
| Mobile client access ports: |
37777 |
| ONVIF port: |
80 |
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: |
Intelligent Object Tracking WDR - 120 dB - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital Noise Reduction EIS - Electronic Image Stabilization ROI - improve the quality of selected parts of image F-DNR (Defog) - Reduction of image noise caused by precipitation SMD 4.0 - searching for an object classified as: human, motor vehicle - increased detection distance and resistance to false alarms Quick Pick - AI technology enabling, together with the recorder, quick identification of interesting objects (people/vehicles) based on an artificial intelligence algorithm. It allows to extract and compare the colors of clothes and vehicles BLC - Back Light Compensation Motion Detection Privacy zones - max. 24 Day/night mode ICR - Movable InfraRed filter AGC - Automatic Gain Control Auto White Balance Sharpness - sharper image outlines IVS analysis : crossing the line (tripwire), intrusion, detection of crossing a virtual fence, abandoned/missing object, fast moving, parking detection, detection of people gathering, loitering detection, face detection - advanced face capture features, supports 6 types of facial attributes extraction Filtering of false alarms based on the recognition of persons and vehicles (tripwire, intrusion) |
| Power supply: |

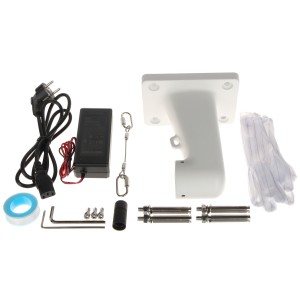

PoE (802.3at), 24 V DC / 2.5 A (power adapter included) |
| Power consumption: |
≤ 12 W (typical) 22 W (max) |

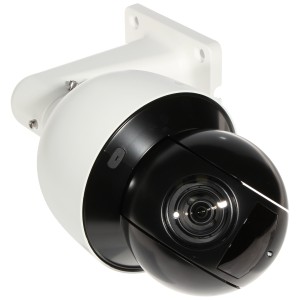

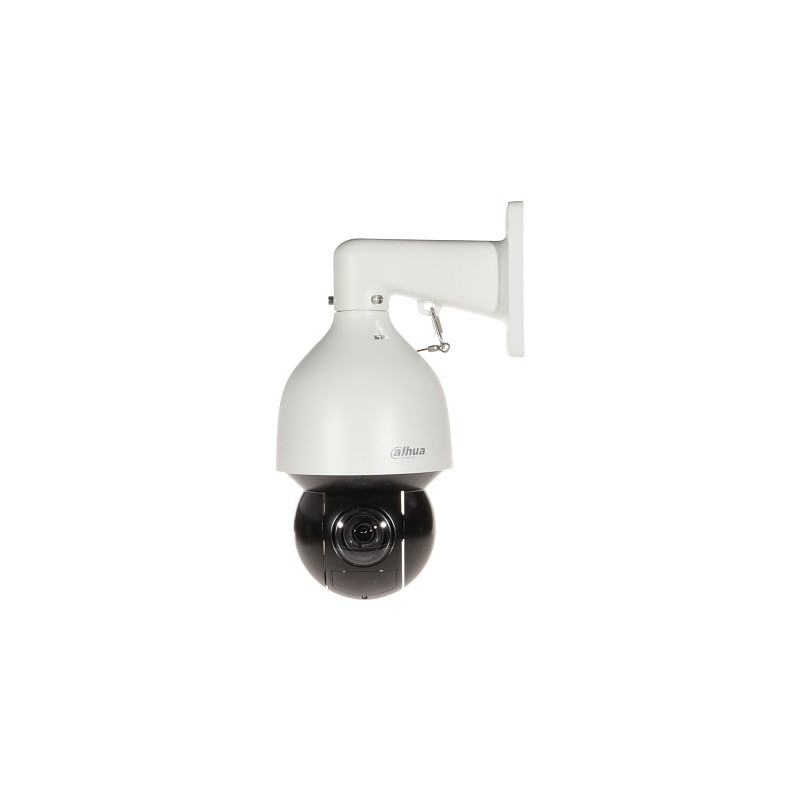

| Housing: |
Speed Dome, Metal + Plastic |
| Color: |
White + Black |
| Operation temp: |
-40 °C ... 70 °C |
| "Index of Protection": |
IP67 |
| Vandal-proof: |
IK10 |

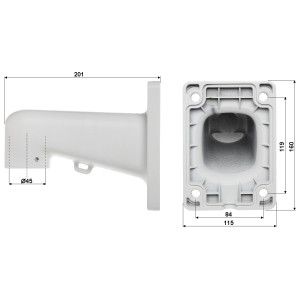

| Weight: |
5.32 kg (with bracket) |

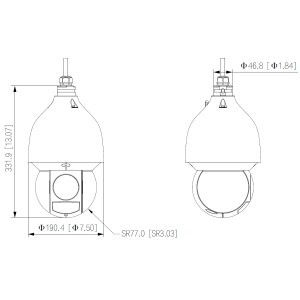

| Dimensions: |
190 x 415 x 268 mm (with bracket) |
| Supported languages: |
Polish, English, Czech, Spanish, French, Dutch, German, Portuguese Romanian, Russian Turkish Hungarian, Italian |
| Manufacturer / Brand: |
DAHUA |
| Guarantee: |
3 years |
