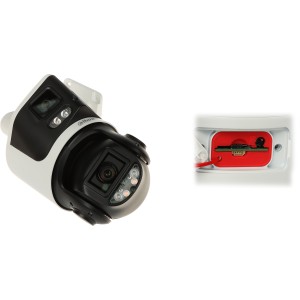

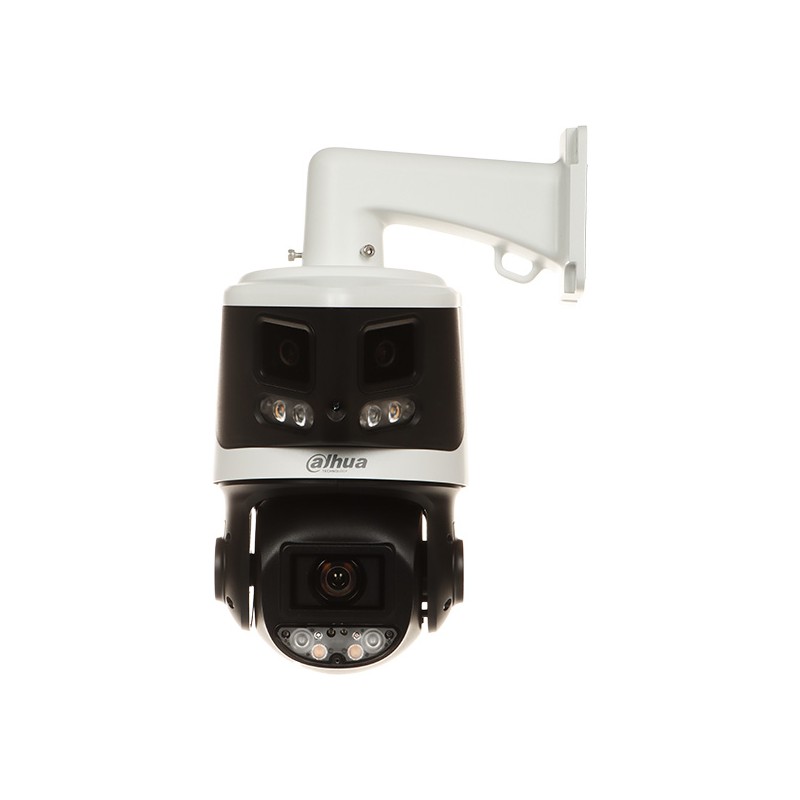

The Speed Dome IP camera, in addition to the traditional PTZ camera module, also has a panoramic camera module mounted in the same housing
The series of these cameras can be used to monitor large spaces in high definition, such as rivers, roads, railways, airports, squares, parks, meeting places, etc.
Camera equipped with Smart Dual Light technology, which allows you to obtain a clear color image even at night and has the function of active audio-visual deterrence in combination with AI artificial intelligence functions
Thanks to the "Starlight" technology used, the camera only needs very low lighting to obtain a clear color image
The DAHUA TiOC series of cameras are modern IP cameras combining 3 innovative technologies: Dahua Full-Color
Camera PTZ : 25 fps @ 3.7 Mpx Panoramic camera : 25 fps @ 8 Mpx
Network interface:
100 Base-T (RJ-45)
Memory card slot:
Micro SD card support up to 512GB
WEB Server:
Built-in
Max. number of on-line users:
20
ONVIF:
Default IP address:
192.168.1.108
Default admin user / password:
admin / - The administrator password should be set at the first start
Web browser access ports:
80, 37777
PC client access ports:
37777
Mobile client access ports:
37777
ONVIF port:
80
RTSP URL:
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Intelligent Image Analysis:
crossing the line (tripwire)intrusion detection of entry into the area / exit from the area loitering detectionabandoned/missing objectfast moving parking detection crowd gathering estimation object detection (people, vehicle) Intelligent Object Tracking face detection - supports 6 types of facial attributes extraction, supports 8 types of face expressions advanced face capture features SMD 4.0 - searching for an object classified as: human, motor vehicle - increased detection distance and resistance to false alarms
Main features:
Thanks to the "Starlight" technology used, the camera only needs very low lighting to obtain a clear color image Smart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality Active deterrence function - Light and sound alarm - Active intrusion deterrence works by blinking blue and red light and siren sound or voice prompts WDR - 120 dB - Wide Dynamic Range2D-DNR, 3D-DNR - Digital Noise ReductionF-DNR (Defog) - Reduction of image noise caused by precipitationEIS - Electronic Image StabilizationROI - improve the quality of selected parts of image Image rotation and mirror BLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Day/night mode Auto White Balance AGC - Automatic Gain Control Sharpness - sharper image outlines Configurable: brightness, contrast, saturation NAS - Network Attached Storage support Motion Detection Filtering of false alarms based on the recognition of persons and vehicles Overvoltage protection Protection against lightning discharges : 6 kV
Housing:
Speed Dome, Metal + Plastic
Color:
White + Black
"Index of Protection":
IP66
IK rating:
Power supply:
PoE (802.3at), 12 V DC / 3 A (not included)
Power consumption:
≤ 12 W (typical), 25 W (max)
Operation temp:
-30 °C ... 60 °C
Weight:
2 kg (without bracket) 2.2 kg (with bracket)

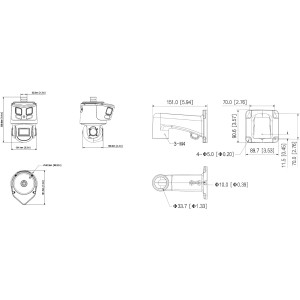

Dimensions:
140 x 182 x 239 mm (without bracket) 140 x 242 x 293 mm (with bracket)
