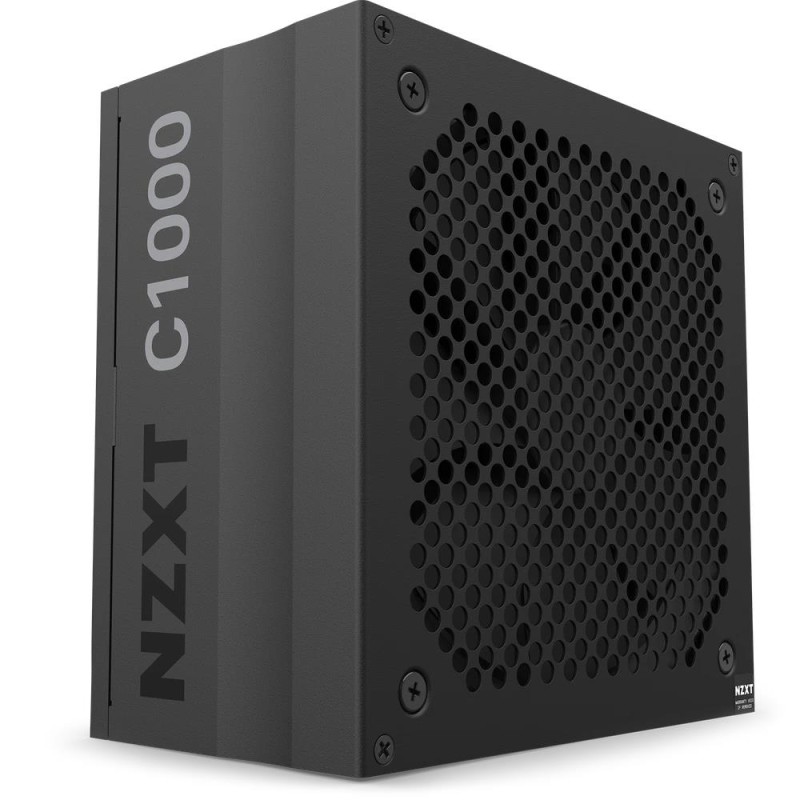

Power Supply|NZXT|PA-0G1BB-EU|1000 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|PA-0G1BB-EU

Data sheet

Vendor Homepage

https://nzxt.com/product/c1000

Model name

PA-0G1BB-EU

Garantija

72

Category Code

PSU

Unit Box Height

0.23

Unit Box Length

0.34

Unit Box Width

0.12

Units per Shipping Box

5

Unit Calculated Volume

0.01161 cubm

Unit Calculated Weight

3.61 kg

Summary

NZXT C1000 Gold. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLU

Weight & dimensions (Width)

150 mm

Weight & dimensions (Depth)

86 mm

Weight & dimensions (Height)

150 mm

Logistics data (Harmonized System (HS) code)

84733020

Operational conditions (Operating temperature (T-T))

0 - 50 C

Design (Product colour)

Black

Power (AC input frequency)

50 - 60 Hz

Power (AC input voltage)

100 - 240 V

Certificates (Certification)

CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

Performance (Noise level)

44.5 dB

Power (Input current)

13 A

Design (Fan diameter)

135 mm

Power (Combined power (+12V))

1002 W

Power (Combined power (+3.3V))

120 W

Power (Combined power (+5Vsb))

15 W

Power (Combined power (-12V))

3.6 W

Power (Max output current (+12V))

83.5 A

Power (Max output current (+3.3V))

22 A

Power (Max output current (+5Vsb))

3 A

Power (Max output current (-12V))

0.3 A

Power (Total power)

1000 W

Ports & interfaces (ATX Power connector (24-pin))

Yes

Ports & interfaces (Cabling type)

Fully-Modular

Ports & interfaces (Motherboard power connector)

24-pin ATX

Ports & interfaces (Number of SATA power connectors)

6

Ports & interfaces (Peripheral (Molex) power connectors (4-pin))

6

Performance (80 PLUS certification)

80 PLUS Gold

Performance (Mean time between failures (MTBF))

100000 h

Performance (Power supply unit (PSU) form factor)

ATX

Performance (Purpose)

PC

Performance (ATX version)

2.4

Ports & interfaces (CPU power connector (4+4 pin))

Yes

Performance (Bearing technology)

FDB

Performance (EPS version)

2.92

Design (Fan speed)

0 - 2300 RPM

Specific References

EAN13

5060301697786

MPN

1424595
