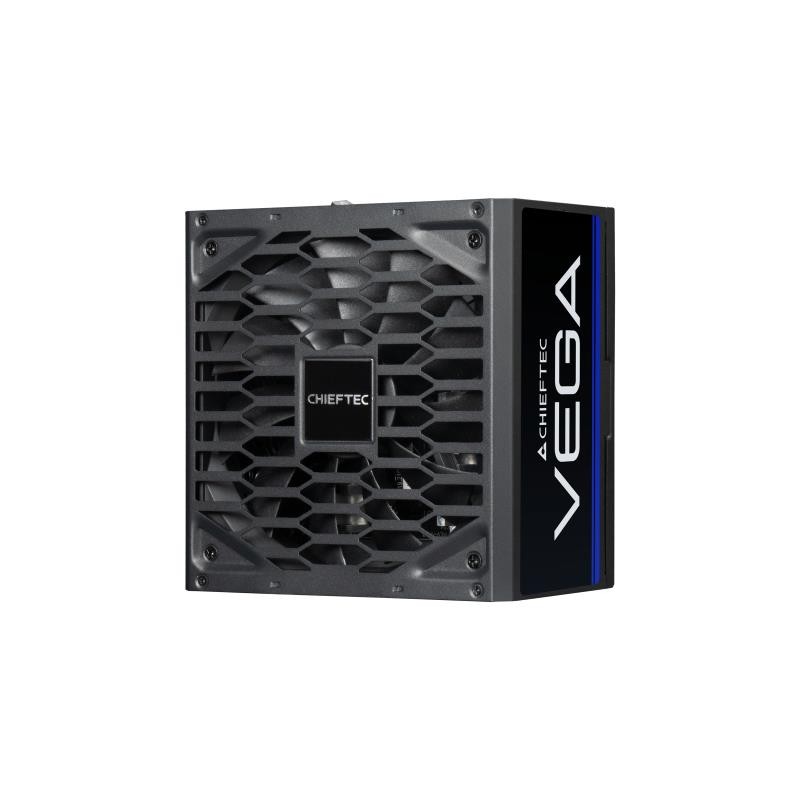

Power Supply|CHIEFTEC|PPG-750-S|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|PPG-750-S

Reference PPG-750-S

Brand CHIEFTEC

750 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 135 mm | Weight 1.96 kg | PPG-750-S

€74.60

VAT included

Quantity

Tellimisel

Description
Product Details

Description

The CHIEFTEC VEGA Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality.
The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.
Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.

Compliant with ATX 12V 3.1
Support PCIe GEN5
80PLUS Gold certified efficiency
LLC Half-Bridge converter with DC to DC technology

Product Details

Brand CHIEFTEC

Reference PPG-750-S

Data sheet

Vendor Homepage: https://www.chieftec.eu/products-detail/591/VEGA_Series/592/PPG-750-S
Model name: PPG-750-S
Garantija: 24
Category Code: PSU
Unit Box Height: 0.21
Unit Box Length: 0.28
Unit Box Width: 0.105
Units per Shipping Box: 5
Unit Calculated Volume: 0.00792 cubm
Unit Calculated Weight: 2.46 kg
Summary: Chieftec Vega 750W Series PPG-750-S. Total power: 750 W, AC input voltage: 100 - 240 V. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: AT
Weight & dimensions (Weight): 1960 g
Packaging data (Package weight): 2460 g
Design (Product colour): Black
Power (AC input voltage): 100 - 240 V
Design (Cooling type): Active
Certificates (Certification): 80PLUS Gold
Design (Fan diameter): 135 mm
Design (Illumination): No
Power (Total power): 750 W
Ports & interfaces (ATX Power connector (24-pin)): Yes
Ports & interfaces (Cabling type): Non-Modular
Ports & interfaces (Motherboard power cable length): 600 mm
Ports & interfaces (Motherboard power connector): 20+4 pin ATX
Ports & interfaces (Number of SATA power connectors): 6
Ports & interfaces (Peripheral (Molex) power cable length): 400 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin)): 3
Ports & interfaces (SATA power cable length): 400 mm
Performance (80 PLUS certification): 80 PLUS Gold
Performance (Power supply unit (PSU) form factor): ATX
Performance (Purpose): PC
Performance (ATX version): 3.1
Ports & interfaces (CPU power connector (4+4 pin)): Yes
Ports & interfaces (PCI Express power connectors (6+2 pin)): 4
Performance (Bearing technology): FDB
Ports & interfaces (CPU power cable length): 650 mm
Ports & interfaces (EPS power connector (8-pin)): Yes
Ports & interfaces (PCI Express power cable length): 600 mm
Ports & interfaces (PCI Express power connectors (12+4 pin)): 1
Ports & interfaces (PCI Express power connectors (12+4 pin) cable length): 600 mm
Ports & interfaces (ATX power connector (20+4 pin)): Yes
Ports & interfaces (EPS power connector (4+4 pin)): Yes
