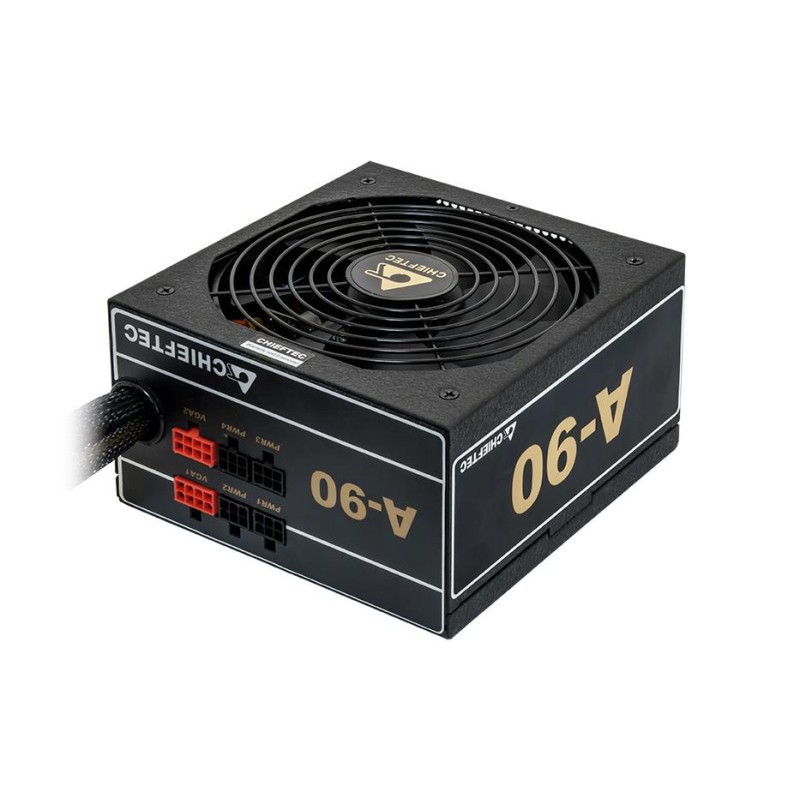

CASE PSU ATX 750W/GDP-750C CHIEFTEC
  • CASE PSU ATX 750W/GDP-750C CHIEFTEC

CASE PSU ATX 750W/GDP-750C CHIEFTEC

GDP-750C
CHIEFTEC
750 W | 200 - 240 V | PC | PS/2 | Fan diameter 140 mm
€68.54
VAT included
Quantity
Tellimisel

Description

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.

Product Details
CHIEFTEC
GDP-750C

Data sheet

Vendor Homepage
https://www.chieftec.eu/en/psus/a-90-serie/gdp-750c.html
Garantija
24
Category Code
PSU
Unit Box Height
0.1
Unit Box Length
0.25
Unit Box Width
0.22
Units per Shipping Box
1
Unit Calculated Volume
0.0055 cubm
Unit Calculated Weight
2.54 kg
Summary
Chieftec GDP-750C. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Fan
Weight & dimensions (Width)
160 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
87 mm
Logistics data (Harmonized System (HS) code)
84733020
Design (Product colour)
Black
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
200 - 240 V
Design (Number of fans)
1 fan(s)
Design (Fan diameter)
140 mm
Power (Combined power (+12V))
744 W
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Combined power (+5Vsb))
2.5 W
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
22 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Power (Total power)
750 W
Ports & interfaces (Cabling type)
Semi-Modular
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Ports & interfaces (PCI Express power connectors (6+2 pin))
4
Design (Fan location)
Top
Ports & interfaces (EPS power connector (8-pin))
Yes
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
1
Power (Max output current (+12V1))
62 A
Other features (Frequency tolerance)
90 %

Specific References

EAN13
4710713230842
MPN
1207558
