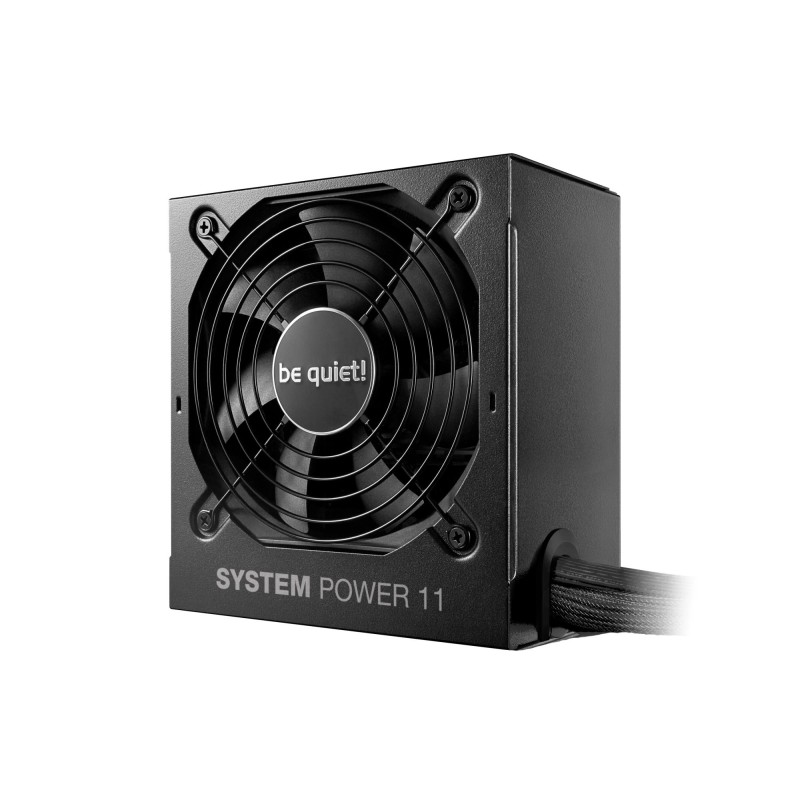

Power Supply|BE QUIET|ATX|PC|200 - 240 V|450 W|BP009EU

Data sheet

Vendor Homepage

https://www.bequiet.com/en/download/products

Garantija

24

Category Code

PSU

Unit Box Height

0.197

Unit Box Length

0.277

Unit Box Width

0.098

Units per Shipping Box

6

Unit Calculated Volume

0.006732 cubm

Unit Calculated Weight

2.3 kg

Summary

be quiet! System Power 11 450W. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certificatio

Weight & dimensions (Width)

150 mm

Weight & dimensions (Depth)

86 mm

Weight & dimensions (Height)

140 mm

Weight & dimensions (Weight)

1700 g

Packaging data (Package width)

195 mm

Packaging data (Package depth)

268 mm

Packaging data (Package height)

97 mm

Packaging data (Package weight)

2100 g

Packaging data (Package type)

Box

Certificates (Compliance certificates)

CB/CE/RoHS/T V mark/UKCA/WEEE

Logistics data (Shipping (inner) case gross weight)

13600 g

Logistics data (Shipping (inner) case height)

218 mm

Logistics data (Shipping (inner) case length)

556 mm

Logistics data (Shipping (inner) case width)

311 mm

Design (Product colour)

Black

Power (AC input frequency)

50 Hz

Power (AC input voltage)

200 - 240 V

Design (Cooling type)

Active

Design (Number of fans)

1 fan(s)

Performance (Noise level)

19.1 dB

Power (Input current)

4 A

Design (Fan diameter)

120 mm

Logistics data (Products per shipping (inner) case)

6 pc(s)

Design (On/off switch)

Yes

Power (Combined power (+12V))

450 W

Power (Combined power (+3.3V))

110 W

Power (Combined power (+5V))

110 W

Power (Combined power (+5Vsb))

15 W

Power (Combined power (-12V))

3.6 W

Power (Max output current (+3.3V))

20 A

Power (Max output current (+5V))

20 A

Power (Max output current (+5Vsb))

3 A

Power (Max output current (-12V))

0.3 A

Power (Power protection features)

Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage

Power (Total power)

450 W

Ports & interfaces (Cabling type)

Non-Modular

Ports & interfaces (Motherboard power connector)

20+4 pin ATX

Ports & interfaces (Number of SATA power connectors)

5

Ports & interfaces (Peripheral (Molex) power connectors (4-pin))

1

Performance (80 PLUS certification)

80 PLUS Bronze

Performance (Mean time between failures (MTBF))

100000 h

Performance (Power supply unit (PSU) form factor)

ATX

Performance (Purpose)

PC

Performance (ATX version)

3.1

Power (Efficiency)

89 %

Ports & interfaces (CPU power connector (4+4 pin))

Yes

Ports & interfaces (PCI Express power connectors (6+2 pin))

2

Performance (Bearing technology)

Rifle

Technical details (Sustainability certificates)

ENERGY STAR/ErP

Performance (EPS version)

2.92

Design (Fan speed)

0 - 1800 RPM

Power (Hold time)

16.86 ms

Power (Power factor)

0.98

Power (Max output current (+12V1))

37.5 A

Other features (Screws included)

Yes

Power (Number of +12V rail(s))

1

Certificates (Waste Electrical and Electronic Equipment (WEEE) compliance)

Yes

Other features (Cable ties included)

Yes

Specific References

EAN13

4260052191859

MPN

1450699
