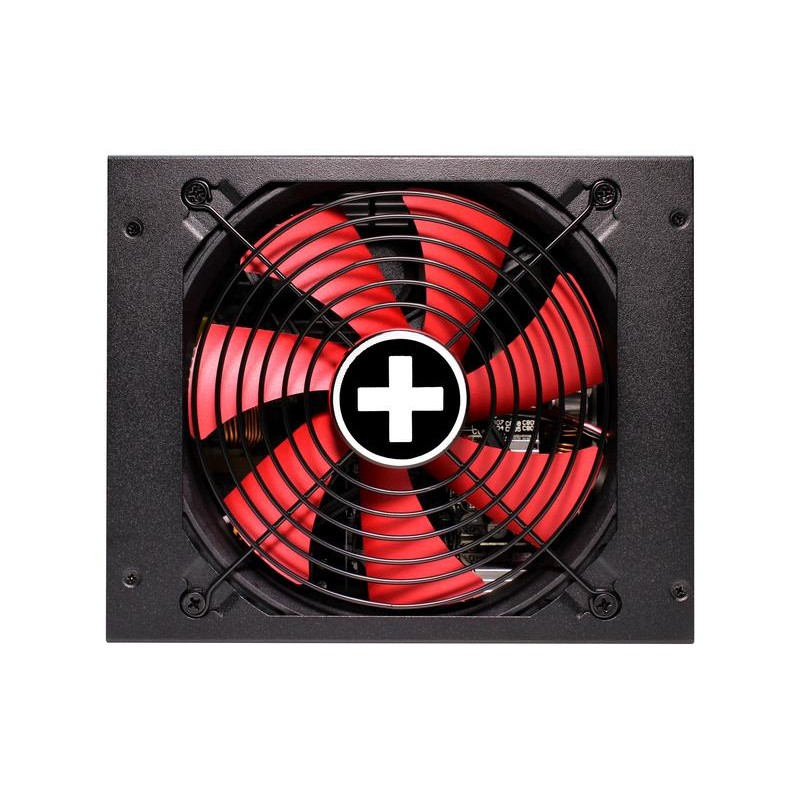

Power Supply|XILENCE|1050 Watts|Efficiency 80 PLUS GOLD|PFC Active|XN176

Reference 1398602

Brand XILENCE

1050 W | 100 - 240 V | Efficiency 89 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Package type Box | XP1050MR9.2

€165.60

VAT included

Quantity

Laos

In stock: 6 Items

Description
Product Details

Description

The fully modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.

Product Details

Brand XILENCE

Reference 1398602

In stock 6 Items

Data sheet

Vendor Homepage: https://www.xilence.net/en/power-supplies/234
Model name: XP1050MR9.2
Garantija: 24
Category Code: PSU
Unit Box Height: 0.098
Unit Box Length: 0.33
Unit Box Width: 0.188
Units per Shipping Box: 1
Unit Calculated Volume: 0.00608 cubm
Unit Calculated Weight: 3.34 kg
Summary: Xilence XP1050MR9.2. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form
Weight & dimensions (Width): 150 mm
Weight & dimensions (Depth): 180 mm
Weight & dimensions (Height): 86 mm
Packaging data (Package type): Box
Certificates (Compliance certificates): RoHS/WEEE
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Input current): 15 A
Power (Max output current (+12V)): 87.5 A
Power (Max output current (+3.3V)): 20 A
Power (Max output current (+5V)): 20 A
Power (Max output current (+5Vsb)): 3 A
Power (Max output current (-12V)): 0.3 A
Power (Power protection features): Over current/Over power/Over voltage/Short circuit/Under voltage
Power (Total power): 1050 W
Ports & interfaces (Cabling type): Fully-Modular
Ports & interfaces (Motherboard power cable length): 650 mm
Ports & interfaces (Motherboard power connector): 20+4 pin ATX
Ports & interfaces (Number of SATA power connectors): 12
Ports & interfaces (PCI Express power connectors (8-pin)): 1
Performance (80 PLUS certification): 80 PLUS Gold
Performance (Power supply unit (PSU) form factor): ATX
Performance (Purpose): PC
Technical details (Sustainability compliance): Y
Power (Power Factor Correction (PFC) type): Active
Performance (ATX version): 3.0
Power (Efficiency): 89 %
Ports & interfaces (CPU power connector (4+4 pin)): Y
Ports & interfaces (PCI Express power connectors (6+2 pin)): 3
Performance (Bearing technology): FDB
Technical details (Sustainability certificates): ErP
