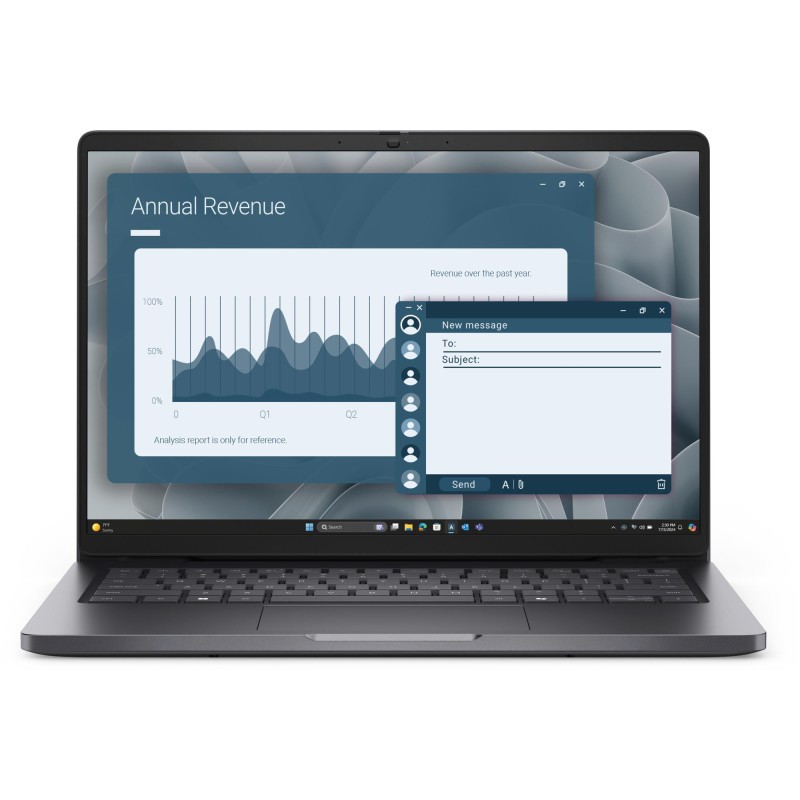

Notebook|DELL|Pro|14|PC14255|CPU Ryzen 5|220|3200 MHz|14"|1920x1200|RAM 8GB|DDR5|5600 MHz|SSD 256GB|AMD Radeon 740M|Integrated|E

Data sheet

Vendor Homepage

www.dell.com/en-au/shop/dell-laptops/dell-pro-14-laptop/spd/dell-pro-pc14255-laptop/bto503_pc14255_au?ref variantstack

Model name

14

NB Family name

Pro

Garantija

36

Category Code

NB

Unit Box Height

0.36

Unit Box Length

0.39

Unit Box Width

0.06

Units per Shipping Box

1

Unit Calculated Volume

0.008424/0.01165 cubm

Unit Calculated Weight

2.5 kg

CnCode

84713000

Summary

DELL Pro 14 PC14255. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen 5, Processor model: 220, Processor frequency: 3.5 GHz. Display diagonal: 35.6 cm (14"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memo

Weight & dimensions (Width)

313.7 mm

Weight & dimensions (Depth)

225.3 mm

Weight & dimensions (Weight)

1360 g

Packaging content (AC adapter included)

Yes

Power (USB Type-C required charging power (max))

65 W

Power (USB Type-C required charging power (min))

45 W

Battery (Battery recharge time)

4 h

Power (USB Type-C charging port)

Yes

Battery (Battery capacity)

45 Wh

Battery (Fast charging)

Yes

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 65 C

Display (Display diagonal)

14 "

Display (Display resolution)

1920 x 1200 pixels

Display (HD type)

Full HD+

Display (Native aspect ratio)

16:10

Ports & interfaces (HDMI ports quantity)

1

Network (Bluetooth)

Yes

Network (Ethernet LAN)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)

Design (Product colour)

Black

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Display (Anti-glare screen)

Yes

Display (Contrast ratio (typical))

800:1

Display (Maximum refresh rate)

60 Hz

Display (Panel type)

IPS

Display (Touchscreen)

No

Ports & interfaces (HDMI version)

2.1

Display (Colour gamut)

45 %

Ports & interfaces (USB Type-C DisplayPort Alternate Mode)

Yes

Processor (Processor frequency)

3.5 GHz

Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Design (Colour name)

Magnetite

Operational conditions (Operating relative humidity (H-H))

0 - 90 %

Display (Pixel density)

162 ppi

Design (Form factor)

Clamshell

Power (AC adapter frequency)

50 - 60 Hz

Power (AC adapter input voltage)

100 - 240 V

Power (AC adapter power)

65 W

Memory (Internal memory)

8 GB

Audio (Audio system)

High Definition Audio

Display (Display brightness)

300 cd/m

Operational conditions (Non-operating altitude)

-15.2 - 10668 m

Operational conditions (Operating altitude)

-15.2 - 3048 m

Carbon footprint (Carbon emissions, end-of-life (kg of CO2e))

1.42

Carbon footprint (Carbon emissions, energy usage (kg of CO2e))

22.862

Carbon footprint (Carbon emissions, logistics (kg of CO2e))

3.408

Carbon footprint (Carbon emissions, manufacturing (kg of CO2e))

114.168

Carbon footprint (PAIA version)

GaBi version 1, 2024

Carbon footprint (Total carbon footprint (kg of CO2e))

142

Ports & interfaces (Thunderbolt 4 ports quantity)

2

Power (USB Power Delivery (USB PD))

Yes

Ports & interfaces (Combo headphone/mic port)

Yes

Storage (SSD form factor)

M.2

Processor (Processor family)

AMD Ryzen 5

Processor (Processor manufacturer)

AMD

Camera (Front camera)

Yes

Camera (Front camera resolution (numeric))

2.07 MP

Software (Operating system installed)

Windows 11 Pro

Audio (Built-in microphone)

Yes

Processor (Processor model)

220

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Processor (Processor cores)

6

Memory (Internal memory type)

DDR5-SDRAM

Storage (Storage media)

SSD

Audio (Number of built-in speakers)

2

Network (Mobile network connection)

No

Performance (Hall sensor)

Yes

Processor (Processor boost frequency)

4.9 GHz

Camera (Video capturing speed)

30 fps

Security (Fingerprint reader)

Yes

Processor (Maximum turbo power)

30 W

Processor (Processor base power)

15 W

Processor (Processor cache)

22 MB

Processor (Processor cache type)

L2 & L3

Processor (Processor generation)

AMD Ryzen 200 Series

Processor (Processor threads)

12

Memory (Maximum internal memory)

64 GB

Memory (Memory data transfer rate)

5600 MT/s

Memory (Memory layout (slots x size))

1 x 8 GB

Memory (Memory slots)

2x SO-DIMM

Storage (Number of SSDs installed)

1

Storage (NVMe)

Yes

Storage (Optical drive type)

No

Storage (SSD capacity)

256 GB

Storage (SSD interface)

PCI Express 4.0

Storage (Total SSDs capacity)

256 GB

Storage (Total storage capacity)

256 GB

Graphics (Discrete graphics card)

No

Graphics (Discrete graphics card model)

Not available

Graphics (On-board graphics card)

Yes

Graphics (On-board graphics card model)

AMD Radeon 740M

Network (Antenna type)

2x2

Network (Ethernet LAN data rates)

10/100/1000 Mbit/s

Network (WLAN controller manufacturer)

MediaTek

Network (WLAN controller model)

MediaTek MT7922

Operational conditions (Operating shock)

140 G

Operational conditions (Operating vibration)

0.66 G

Software (Operating system architecture)

64-bit

Storage (M.2 SSD size)

2230 (22 x 30 mm)

Storage (SSD memory type)

TLC

Ports & interfaces (Intel Thunderbolt 4)

Yes

Software (Trial software)

McAfee Business Protection 1-year,Microsoft Office Trial

Ports & interfaces (Number of USB ports with PowerShare support)

1

Ports & interfaces (PowerShare)

Yes

Audio (Speaker power)

2.5 W

Camera (Front camera resolution)

1920 x 1080 pixels

Audio (Number of microphones)

2

Keyboard (Numeric keypad)

No

Keyboard (Pointing device)

Touchpad

Battery (Number of battery cells)

3

Design (Product type)

Laptop

Camera (Front camera HD type)

Full HD

Keyboard (Copilot key)

Yes

Keyboard (Keyboard backlit)

Yes

Security (Cable lock slot)

Yes

Security (Cable lock slot type)

Wedge

Security (Trusted Platform Module (TPM))

Yes

Security (Trusted Platform Module (TPM) version)

2.0

Display (RGB colour space)

NTSC

Memory (Memory form factor)

SO-DIMM

Weight & dimensions (Height (front))

18.89 mm

Weight & dimensions (Height (rear))

20.37 mm

Network (Wi-Fi data rate (max))

2400 Mbit/s

Audio (Audio chip)

Realtek ALC3204

Network (Wi-Fi band)

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Ports & interfaces (Power adapter barrel connector)

4.5 mm

Power (USB charging voltage)

15/20/5/9 V

Specific References

EAN13

143860500000

MPN

1438605
