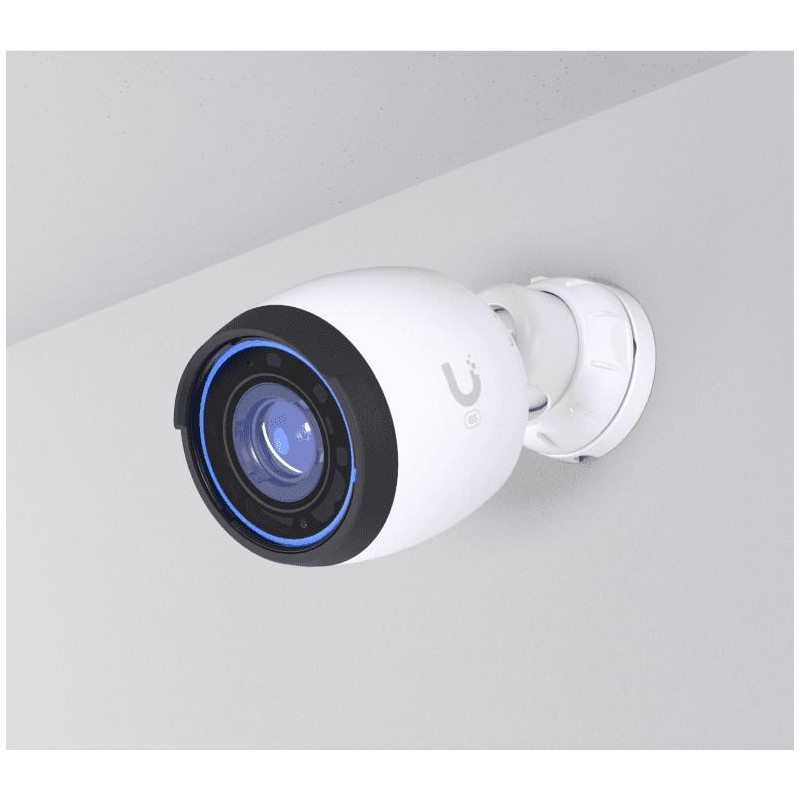

NET CAMERA 8MP/UVC-G5-PRO UBIQUITI

Data sheet

Vendor Homepage

https://store.ui.com/us/en/products/uvc-g5-pro?variant UVC-G5-Pro

Garantija

12

Category Code

FNC

Unit Box Height

0.116

Unit Box Length

0.241

Unit Box Width

0.129

Units per Shipping Box

6

Unit Calculated Volume

0.006593 cubm

Unit Calculated Weight

1.13 kg

Summary

Ubiquiti G5 Professional. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 35, 109.9 , Lens viewi

Weight & dimensions (Weight)

650 g

Performance (Certification)

FCC, IC, CE

Operational conditions (Operating temperature (T-T))

-20 - 50 C

Weight & dimensions (Diameter)

86 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

10 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Aluminium/Polycarbonate (PC)

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 90 %

Design (Form factor)

Bullet

Weight & dimensions (Length)

154.3 mm

Packaging content (Mounting kit)

Yes

Power (Power source type)

PoE

Audio (Built-in microphone)

Yes

Network (Ethernet interface type)

Fast Ethernet

Performance (Built-in processor)

Yes

Design (IK code)

IK04

Design (International Protection (IP) code)

IP65

Design (Mounting type)

Ceiling/Wall/Pole

Design (Weatherproof)

Yes

Performance (Connectivity technology)

Wired

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

40, 127.7

Camera (Lens viewing angle, horizontal)

35, 109.9

Camera (Lens viewing angle, vertical)

19.8, 60

Image sensor (Optical sensor size)

1/2 "

Lens system (Zoom capability)

Yes

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

25 m

Video (Frame rate)

30 fps

Video (Image quality adjustment)

Brightness/Contrast/Sharpness

Video (Maximum resolution)

3840 x 2160 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

2D noise reduction,3D noise reduction

Video (Total megapixels)

8 MP

Storage (Built-in HDD)

No

Management features (Reset button)

Yes

Power (DC output voltage)

37,48,54,57

Packaging content (Number of cameras)

1

Lens system (Focal length range)

4.1 - 12.3 mm

Lens system (Maximum aperture number)

3.3

Video (Video compression formats)

H.264

Lens system (Minimum aperture number)

1.53

Lens system (Optical zoom)

3 x

Specific References

EAN13

810084690246

MPN

1406377
