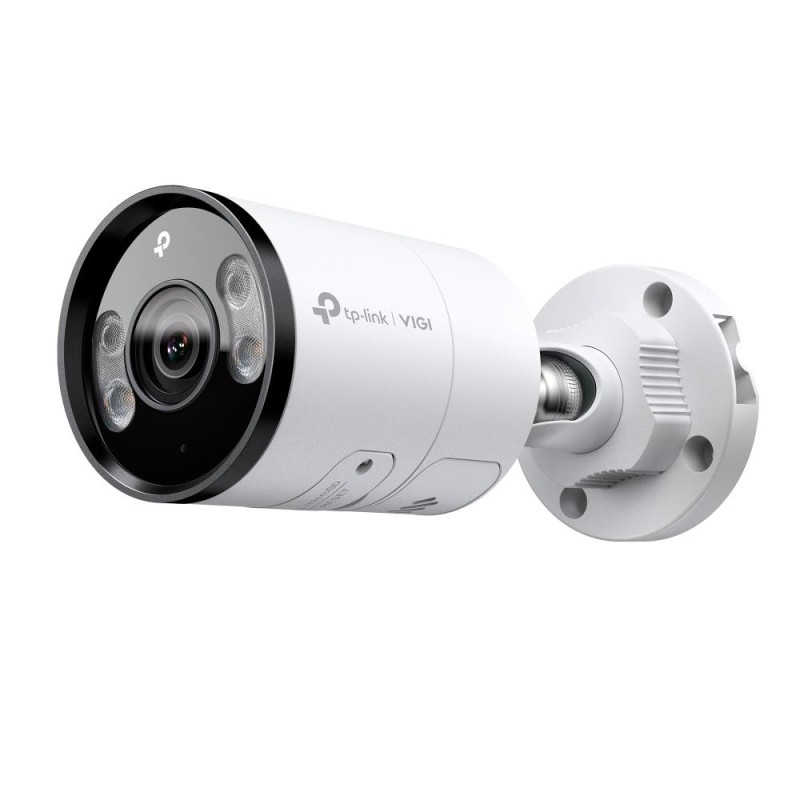

NET CAMERA BULLET H.265+ 5MP/VIGI C355(2.8MM) TP-LINK

Data sheet

Vendor Homepage

https://www.tp-link.com/in/business-networking/vigi-network-camera/vigi-c355/

Garantija

36

Model

VIGI C355(2.8MM)

Category Code

FNC

Unit Box Height

0.1

Unit Box Length

0.22

Unit Box Width

0.13

Units per Shipping Box

1

Unit Calculated Volume

0.003003 cubm

Unit Calculated Weight

0.79 kg

Summary

TP-Link VIGI C355. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360 , Lens viewing angle, horizo

Weight & dimensions (Width)

184 mm

Weight & dimensions (Height)

74 mm

Weight & dimensions (Weight)

525 g

Performance (Certification)

CE, NTRA, VCCI, KC, BSMI, FCC, IC

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

10.7 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Bullet

Weight & dimensions (Length)

74 mm

Camera (Camera shutter speed)

1/3 to 1/10000 s

Audio (Audio system)

2-way

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Security (Password protection)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Wall

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

134

Camera (Lens viewing angle, horizontal)

111.4

Camera (Lens viewing angle, vertical)

58.8

Image sensor (Optical sensor size)

1/2.7 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Night vision (Night vision distance)

30 m

Video (Frame rate)

30 fps

Video (Image quality adjustment)

Brightness/Contrast/Mirror/Saturation/Sharpness

Video (Maximum resolution)

2880 x 1620 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

5 MP

Storage (Built-in HDD)

No

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Fixed focal length)

2.8 mm

Camera (Minimum illumination)

0.005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.6

Video (Region of Interest (ROI) encoding)

Yes

Performance (Built-in light)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265+

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 90

Video (Bit rate control)

Constant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2688 x 1520/2880 x 1620

Audio (Audio formats supported)

G.711

Audio (Signal-to-Noise Ratio (SNR))

52 dB

Network (Supported network protocols)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Night vision (Number of illumination LEDs)

4

Security (Privacy protection)

Yes

Performance (Dynamic range)

120 dB

Lens system (Detect distance)

64 m

Lens system (Identify distance)

6 m

Lens system (Observe distance)

27 m

Lens system (Recognize distance)

13 m

Video (Bit rate)

6 Mbps

Night vision (Infra-red wavelength)

850 nm

Security (IP address filtering)

Yes

Security (Digest authentication)

Yes

Camera (Number of Privacy masking areas)

4

Audio (Sample rate)

8 kHz

Specific References

EAN13

4895252506822

MPN

1420730
