Description
B860-PLUS WIFI
Product Details
Reference

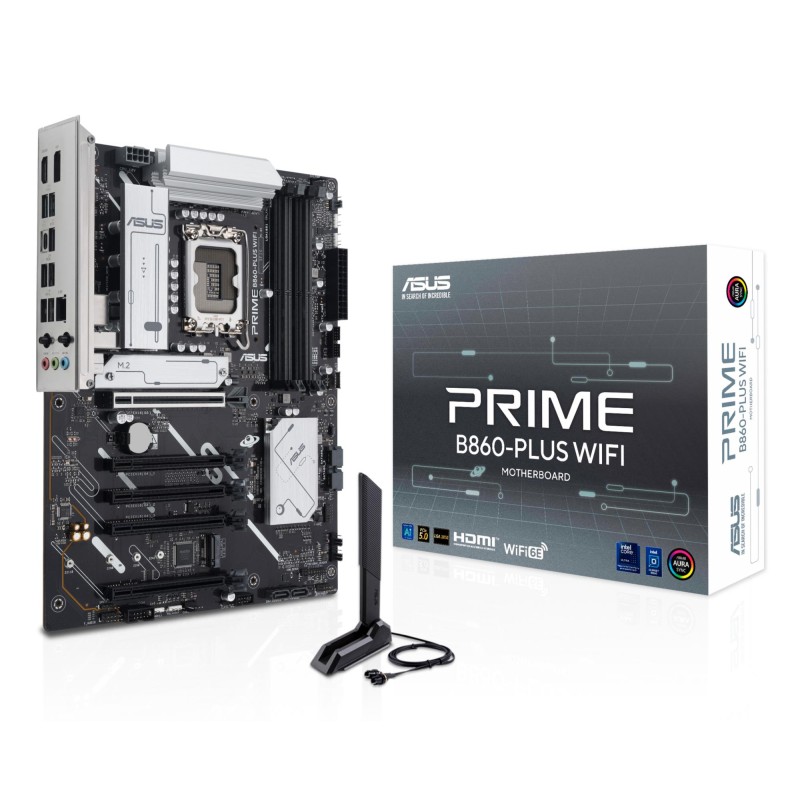

PRIME B860-PLUS WIFI
Data sheet
Vendor Homepage
https://www.asus.com/motherboards-components/motherboards/prime/prime-b860-plus-wifi/
Garantija
36
Model
PRIME B860-PLUS WIFI
Category Code
MBI
Unit Box Height
0.275
Unit Box Length
0.357
Unit Box Width
0.07
Units per Shipping Box
5
Unit Calculated Volume
0.008022 cubm
Unit Calculated Weight
1.72 kg
Summary
ASUS PRIME B860-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Suppo
Weight & dimensions (Width)
305 mm
Weight & dimensions (Depth)
244 mm
Packaging data (Package width)
377 mm
Packaging data (Package depth)
372 mm
Packaging data (Package height)
302 mm
Packaging data (Package weight)
1664 g
Packaging content (Cables included)
SATA
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.3
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
Wi-Fi 6E (802.11ax)
Features (Product colour)
Aluminium/Black
Packaging content (Screws included)
Yes
Processor (Processor manufacturer)
Intel
Network (Top Wi-Fi standard)
Wi-Fi 6E (802.11ax)
Features (Component for)
PC
Memory (Maximum internal memory)
256 GB
Memory (Memory channels)
Dual-channel
Graphics (On-board graphics card)
No
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Processor (Compatible processor series)
Intel Core Ultra (Series 2)
Processor (Processor socket)
LGA 1851 (Socket V1)
Processor (Supported processor sockets)
LGA 1851
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
6
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
4
Internal I/O (Number of COM connectors)
1
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (S/PDIF out connector)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
2
Rear panel I/O ports (WiFi-AP antenna jack)
1
Network (Ethernet interface type)
2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel B860
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11
Expansion slots (Number of M.2 (M) slots)
2
Expansion slots (PCI Express x16 (Gen 4.x) slots)
4
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Internal I/O (Chassis intrusion connector)
Yes
Internal I/O (Thunderbolt headers)
1
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
1
Memory (ECC сompatibility)
Non-ECC
Expansion slots (1st M.2 highest PCI Express generation)
5.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Expansion slots (2nd M.2 largest key size)
2280
Packaging content (Antenna included)
Yes
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)
1
Specific References
EAN13
4711387814697
MPN
1432694
