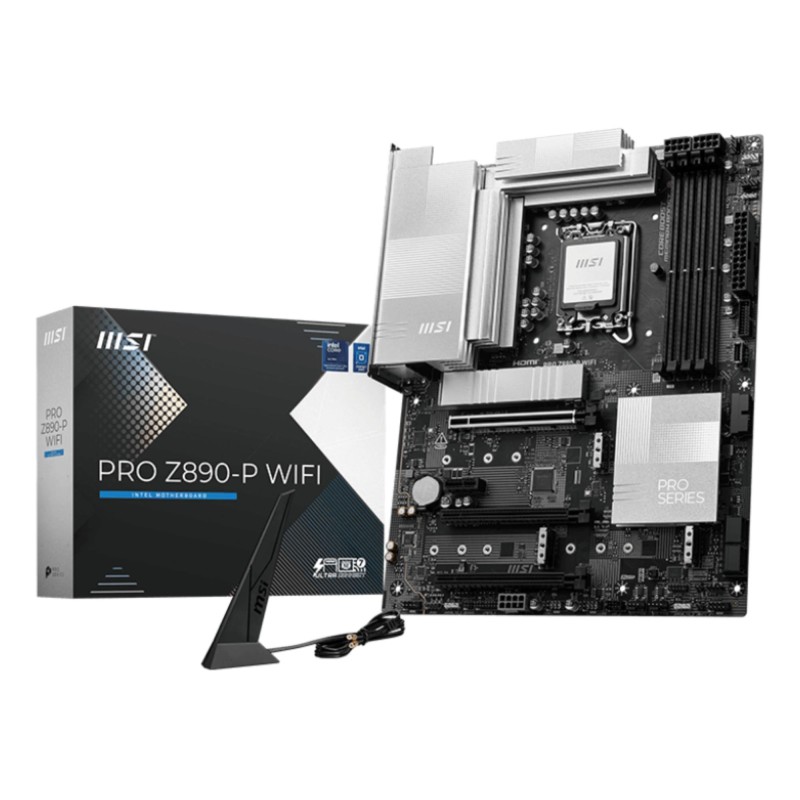

Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x

Data sheet

Vendor Homepage

https://www.msi.com/index.php

Garantija

36

Model

PRO Z890-P WIFI

Category Code

MBI

Unit Box Height

0.073

Unit Box Length

0.342

Unit Box Width

0.27

Units per Shipping Box

5

Unit Calculated Volume

0.008048 cubm

Unit Calculated Weight

2.06 kg

CnCode

84733020

Summary

MSI PRO Z890-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported s

Weight & dimensions (Width)

243.84 mm

Weight & dimensions (Depth)

304.8 mm

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.4

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Features (Product colour)

Black

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Features (Component for)

PC

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Graphics (On-board graphics card)

No

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Expansion slots (PCI Express x4 (Gen 4.x) slots)

2

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

LGA 1851

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

9200 MHz

Memory (Supported memory clock speeds)

6400/9200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Storage controllers (Number of HDDs supported)

8

Storage controllers (Number of storage drives supported)

4

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

4

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

4

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Network (Ethernet interface type)

5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel Z890

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11

Expansion slots (Number of M.2 (M) slots)

4

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Thunderbolt ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Features (Audio chip)

Realtek ALC897

Processor (Maximum internal memory supported by processor)

256 GB

Internal I/O (Total number of SATA connectors)

4

Memory (ECC сompatibility)

Non-ECC

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)

1

Internal I/O (Number of EPS power connectors (8-pin))

1

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Specific References

EAN13

4711377257701

MPN

1424202
