Description

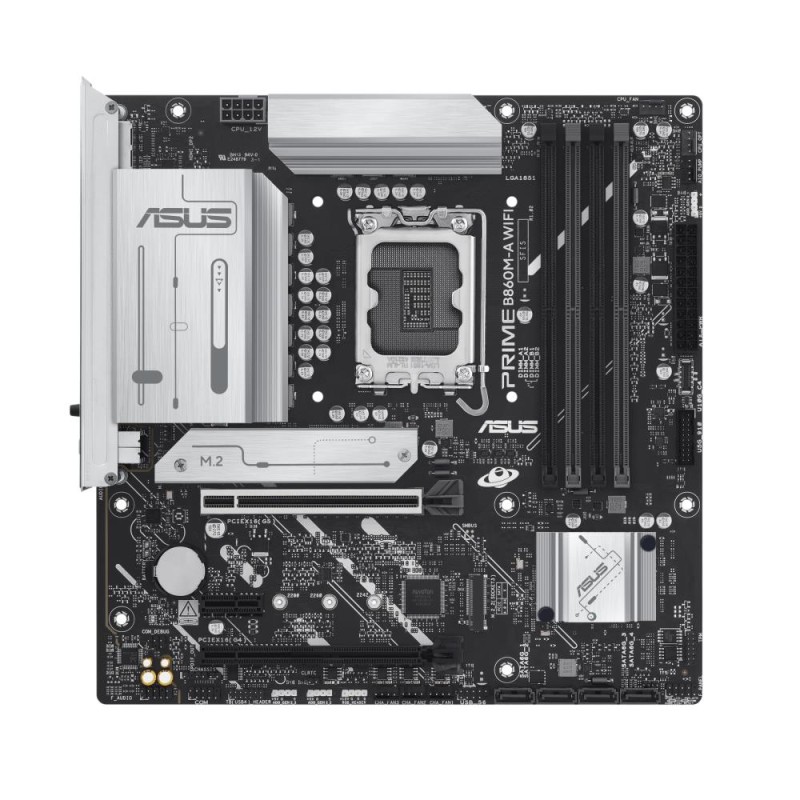

Intel B860 Express | LGA1851 | Micro-ATX | DDR5 | 8666 MHz | Memory slots 4 | 1xPCI-Express 4.0 1x | 1xPCI-Express 4.0 16x | 1xPCI-Express 5.0 16x | 2xM.2 | 1xHDMI | 1xDisplayPort | 7xUSB 2.0 | 1xUSB-C | 1xUSB-C w/Thunderbolt | 1xOptical S/PDIF | 1xRJ45 | 3xAudio port | USB-C | USB 2.0 | Thunderbolt | Bluetooth | WiFi | Video Depending on CPU | LAN 2.5 Gigabit | Audio | RAID SATA 0, 1, 5, 10
Product Details
Reference
1432670
In stock
5 Items
Data sheet
Vendor Homepage
www.asus.com/motherboards-components/motherboards/prime/prime-b860m-a-wifi/
Form Factor
Micro-ATX
Socket
LGA1851
Input/Output connectors (USB 2.0)
7
Memory type
DDR5
Frequency speed
8666 MHz
Interface (USB 2.0)
Yes
Input/Output connectors (RJ45)
1
Input/Output connectors (HDMI)
1
Integrated LAN
2.5 Gigabit
Input/Output connectors (Optical S/PDIF)
1
Interface (Bluetooth)
Yes
Interface (WiFi)
Yes
Chipset
Intel B860 Express
Integrated audio
Yes
Integrated video
Depending on CPU
Memory slots
4
RAID
SATA 0, 1, 5, 10
Expansion slots (M.2)
2
Input/Output connectors (DisplayPort)
1
Input/Output connectors (Audio port)
3
Interface (Thunderbolt)
Yes
Interface (USB-C)
Yes
Garantija
36
Input/Output connectors (USB-C w/Thunderbolt)
1
Expansion slots (PCI-Express 4.0 16x)
1
Expansion slots (PCI-Express 4.0 1x)
1
Model
PRIME B860M-A WIFI
Category Code
MBI
Expansion slots (PCI-Express 5.0 16x)
1
Unit Box Height
0.276
Unit Box Length
0.28
Unit Box Width
0.07
Input/Output connectors (USB-C)
1
Units per Shipping Box
10
Unit Calculated Volume
0.00622 cubm
Product Net Weight
1 kg
Unit Calculated Weight
1.48 kg
Specific References
EAN13
4711387806289
MPN
PRIME B860M-A WIFI
