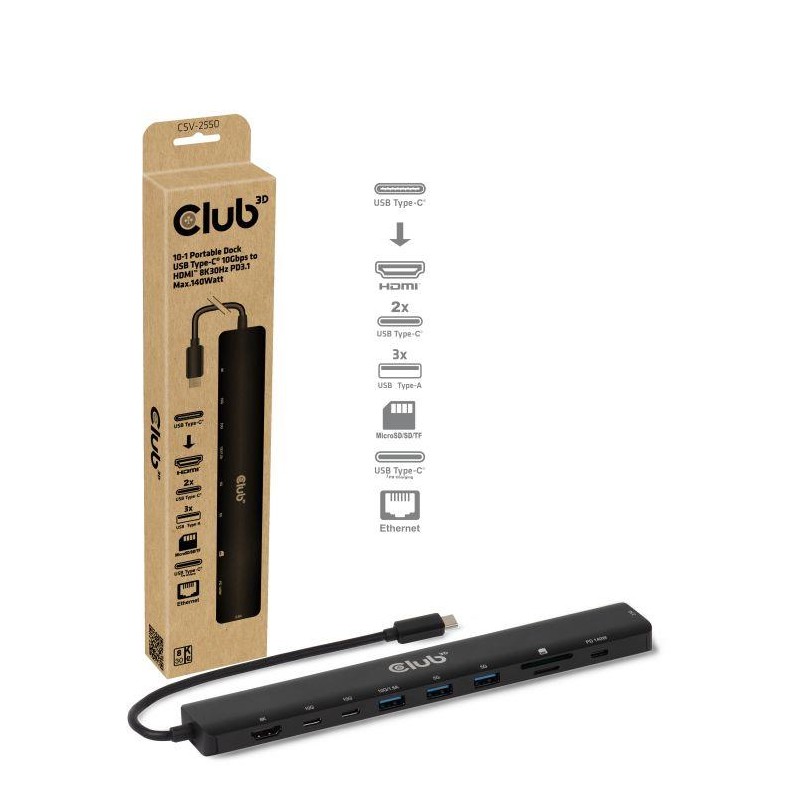

10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt
The Club 3D CSV-2550 is a 10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt, providing an ideal solution for extending the port of USB Type-C® or Thunderbolt® host (PC/Laptop/Mobile phone, etc.), especially for those host with a single USB Type-C® port. This hub enables to output HDMI™ with max 8K30Hz or 4K144Hz high refresh rate for more natural and smoother visual experience at the meanwhile transfer USB 10Gbps data. 3x USB Type-A and 2x USB Type-C® data ports allow you to connect 5 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 port allows the host to get access to 2.5 Gigabit Ethernet. Besides, the USB Type-C® female supports PD 3.1 with max 140W PD Charging. It can work on all DP Alt mode supported USB Type-C® hosts.
• 10-PORT USB Type-C® HUB: Expand the connectivity of a USB Type-C® computer by adding three USB 10Gbps Ports (1x USB Type-A, 2x Type-C®) and 2x USB 5Gbps Ports ( 2x USB Type-C®) plus a Power Delivery 3.1 USB Type-C® Port Max. 140Watt; 2.5 Gigabit Ethernet RJ45 for wired LAN connectivity (Wake-on-LAN); Easy Driverless setup; as well as one HDMI™ 8K30Hz port
• 2.5GBASE-T GIGABIT ETHERNET: Features a 2.5Gb network controller that delivers speeds of 10/100/1000/2500Mbps; For laptops / devices without a USB Type-A or Ethernet, such as MacBook /iPad Air / Pro; USB Type-C® connectivity while providing power for PD3.1 charging
• RELIABLE PERFORMANCE: USB bus powered or via external USB Type-C® power adapter; 140W Power Delivery 3.1 pass through with 15W dedicated to the functioning of this product, the rest power (max 125W) will be passed for charging the host
• SD/TF CARD SLOTS: allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104 (104Mbyte/s)
